Yale

SIZE 2-4 POWER ADJUSTABLE DOOR CLOSER WITH BC & PA BRACKET

SIZE 2-4 POWER ADJUSTABLE DOOR CLOSER WITH BC & PA BRACKET

$175.00 AUD
$175.00 AUD
Sale Sold out
Shipping calculated at checkout.

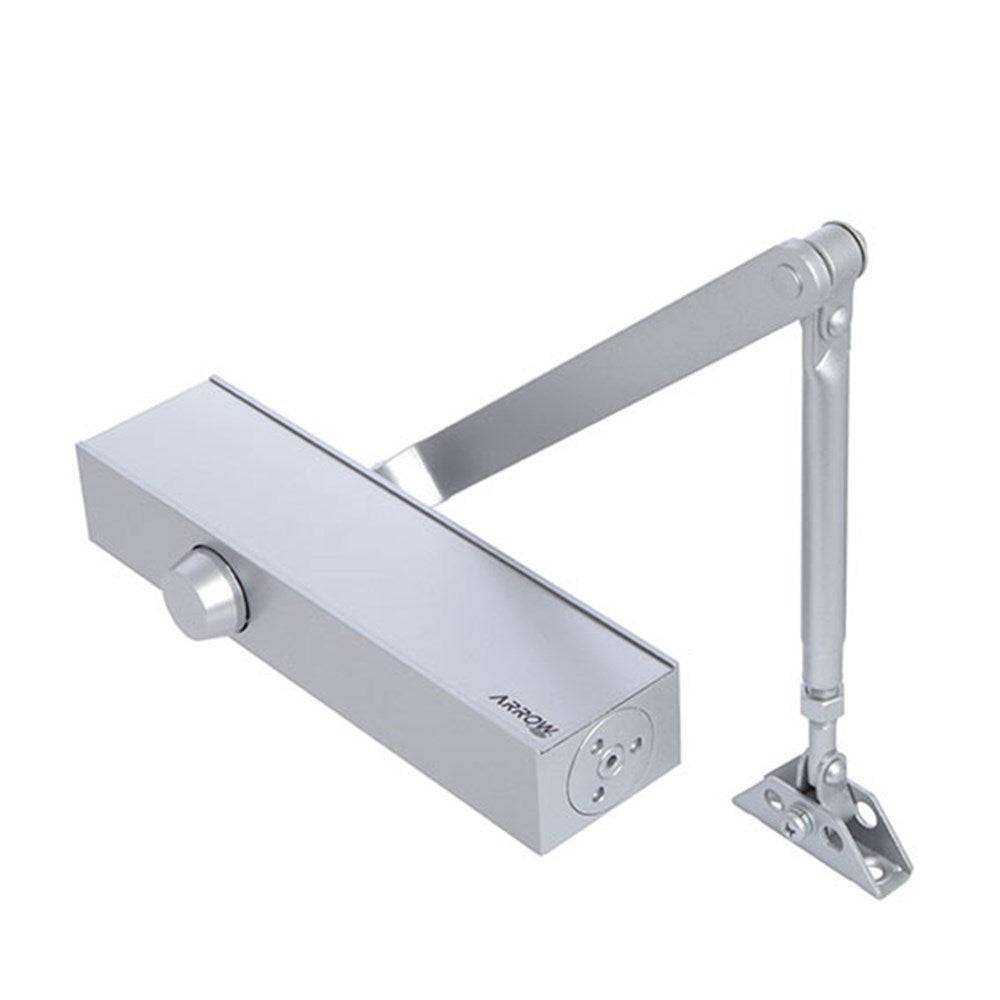

Arrow A2400 series power adjustable hydraulic door closer.

firerated-icon This Arrow Door Closer has been successfully fire tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Door sets.

  • Power adjustable closer.
  • Power adjustment range 2 - 4.
  • Backcheck is standard.
  • Heat treated rack & pinion design.
  • Non-handed.
  • Built in pressure relief valve to protect against rough use.
  • Adjustable closing & latching valves.
  • Parallel arm bracket included.
  • Suitable for door weight from 40 to 80kg.
  • Suitable for door width up to 1100mm.
  • Maximum closing Torque 13-18Nm.
  • Forged steel arms passivated against corrosion.
  • 2 hour fire rated
  • Finished in Silver
  • Range of accessories available
Technical Specifications
Brand YALE
Adjustable Closing Speed Yes
Adjustable Latching Speed Yes
Finish Silver
Has Backcheck Yes
Has Delay Action No
Has Holdopen No
Parallel Arm Bracket Included Yes
Spring Strength EN2-4
Fire Rated Yes
