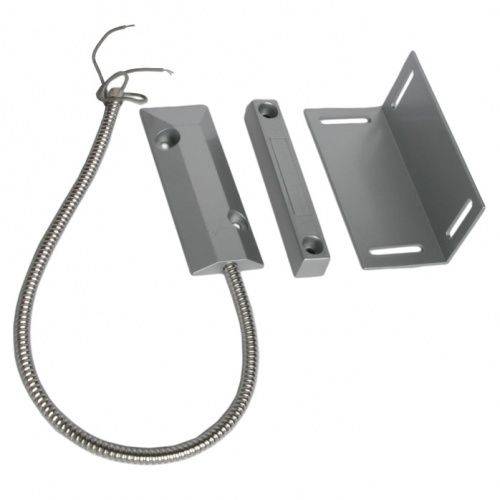

Roller Door Heavy Duty Reed Switch, 106mm with Bracket

Roller Door Heavy Duty Reed Switch, 106mm with Bracket

$45.00 AUD
$45.00 AUD
Sale Sold out
Shipping calculated at checkout.

Roller Door Heavy Duty Reed Switch, 106mm with Bracket, 350mm Armoured Cable, 65mm Gap

Product specifics & Details

  • Contact: NC, SPST
  • Rating (max): 10W
  • Voltage (max): 100VDC
  • Current (max): 500mA
  • Reed: Epoxy sealed
  • Dimensions:
    • Armoured cable: 630mm
    • Reed switch: 106 x 36 x 10mm
    • Magnet: 106 x 15 x 16mm
    • Bracket: 106 x 50 x 50mm
  • Gap: 50mm

Discover the Roller Door Heavy Duty Reed Switch with a 106mm bracket and 350mm armoured cable. Perfect for secure connections with a 65mm gap..
