Neptune
Neptune Touchless Exit,ANSI,NO/NC/C,LED,1.7mm SS,12-24V,BLACK
Neptune Touchless Exit,ANSI,NO/NC/C,LED,1.7mm SS,12-24V,BLACK
Regular price
$68.00 AUD
Regular price
Sale price
$68.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Neptune Touchless Exit,ANSI,NO/NC/C,LED,1.7mm SS,12-24V,BLACK
Description

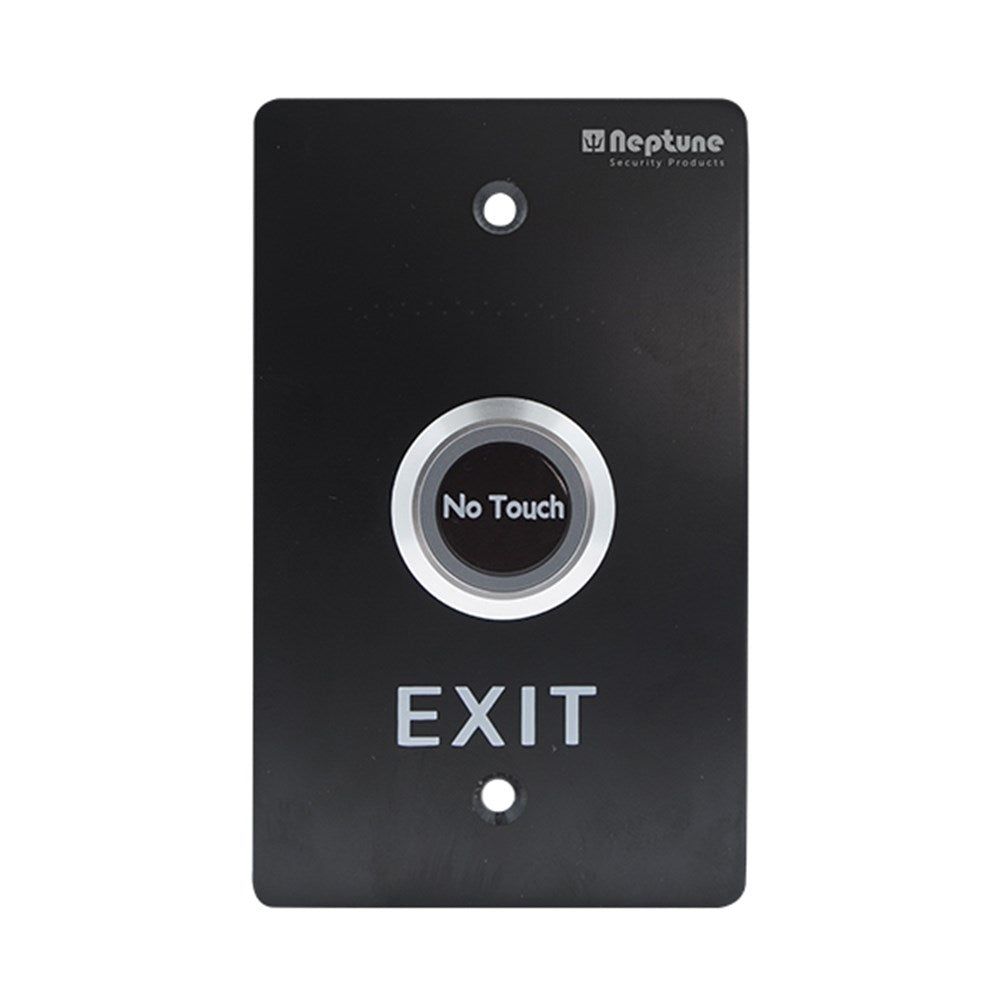

Neptune Matt Black touchless sensor exit button with LED.
- Contact rating: 3A/12-24V.
- Power: 12-24VDC.
- Output contact: NO/NC/COM.
- Mechanical life: 500,000 tested.
- Detection range: 3 - 15cm (adjustable).
- LED indicator: Blue LED Indicator (Standby).
Green LED Indicator (Sensation). - Panel: 1.7 mm thick 304 stainless steel.
- Operating temp: -20℃~ 55℃.
- Operating humidity: 0-95%(relative humidity).
- Surface mount: Optional NEASMB metal back box.
- Installation diameter: 28 mm.
- Fixing centres: 83 mm.
- Dimensions: 115 (L) x 70 (W) x 25 mm (D).
- Weight: 0.148kg.
Technical Specifications
| Brand | NEPTUNE |
| Finish | Matt Black |
| Current Rating | 3 A at 12 V to 24 V |
| LED Indicator | Yes |
| Momentary | Yes |
| Depth in mm | 25 |
| Grade of Stainless Steel | 304 |
| Overall Length in mm | 115 |
| Width in mm | 70 |
| Text or Symbol on Plate | No Touch + EXIT |
| Touch or Touchless Operation | Touchless |
