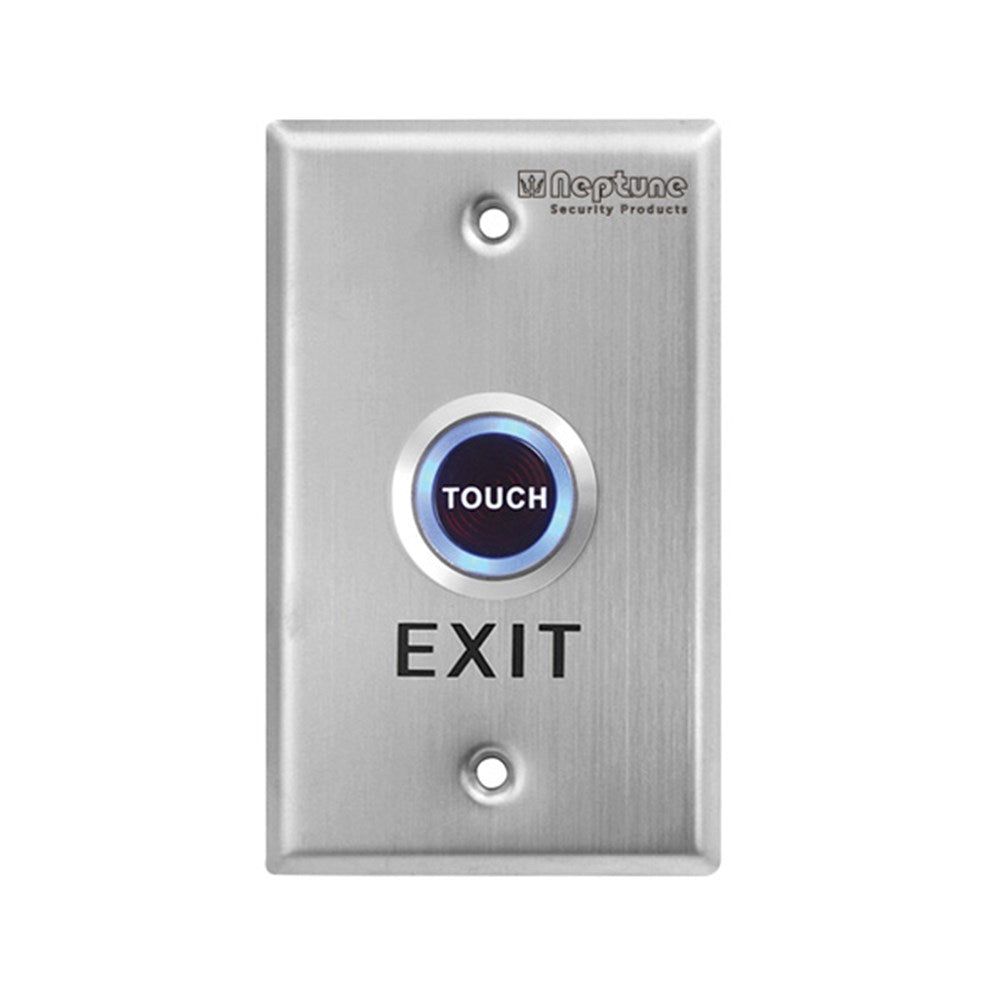

Neptune Touch to Exit,ANSI,NO/NC/C,LED,0.9 SS

Neptune touch sensor exit button with LED.

• Contact rating: 3A/12V.
• Power: 12VDC.
• Output contact: NO/NC/COM.
• Mechanical life:100,000 tested.
• LED indicator: Blue LED Indicator (Standby).
                           Green LED Indicator (Sensation).
• Panel: 0.9 mm thick 304 stainless steel.
• Operating temp: -20℃~ 55℃.
• Operating humidity: 0-95%(relative humidity).
• Surface mount: Optional NEASMB metal back box.
• Installation diameter: 28 mm.
• Fixing centres: 83 mm.
• Dimensions: 115 (L) x 70 (W) x 25 mm (D).
• Weight: 0.078kg.
