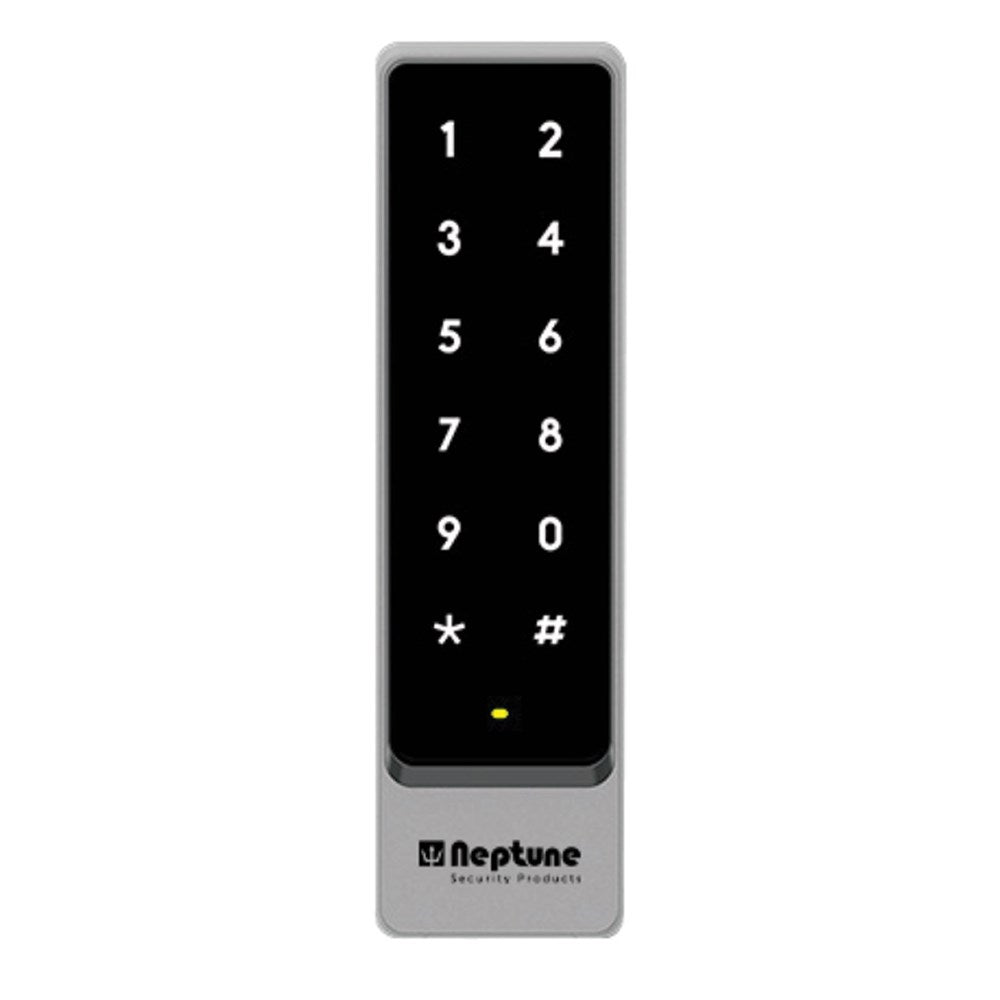

Neptune Standalone/Wiegand Capacitive Touch Mullion Keypad with HID/EM/Mifare Reader, IP65

The NEKPWST2S is a slimline 2x6 IP65 rated keypad and has a capacitive touch keypad with a reinforced, high strength, wear-resistant glass panel.

There is an onboard reader, and with a dual-band antenna, supports EM/HID/MF Cards/Fobs.

The keypad backlight can be set to Normal ON, Normal OFF or Automatic mode. It is multi-function, so it can be used as a reader, single door controller, anti-pass back, etc.

The strong zinc alloy case makes this unit ready to be fitted in any domestic or commercial location.

• Input voltage: DC12~24V.
• Idle current: ≤50mA.
• Proximity card: 125KHz EM/HID; 13.56MHz MF/CPU/NFC (ISO14443A).
• Reading range: 125KHz ≤5 cm; 13.56MHz ≤2 cm.
• Wiegand output format: Wiegand 26-37 bit (HID card output Wiegand 26-37 automatically).
• Keypad output format: 4 bit, 8 bit, virtual card.
• Dimensions: 160 (H) x 45 (W) x 26 mm (D).
• Operating Temperature:-40~60°C.
• Operating Humidity:0~95%(non-condensing).
