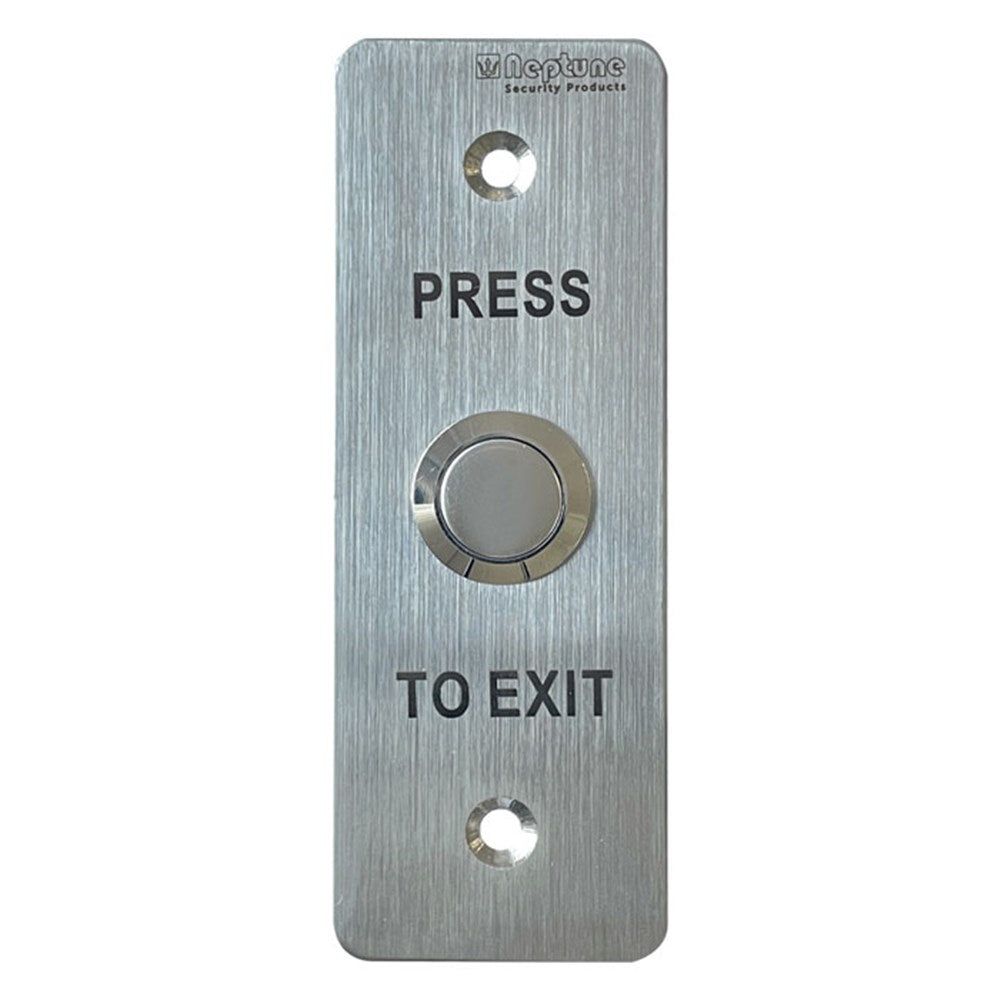

• Neptune Mullion Exit Button with 1.7mm stainless steel plate, surface-mounted design for access control. Features 'Press to Exit' text and central push button.
1 1

Neptune

Neptune Press to Exit,Mullion,NO/C,1.7mm SS

Neptune Press to Exit,Mullion,NO/C,1.7mm SS

$22.00 AUD
$22.00 AUD
Sale Sold out
Shipping calculated at checkout.

Neptune Press to Exit,Mullion,NO/C,1.7mm SS

Description

Neptune classic mullion stainless steel face plate exit button.

  • Contact rating: 3A/125-250VAC.
  • Power: 12VDC.
  • Output contact: NO/COM.
  • Mechanical life:100,000 tested.
  • Panel: 1.7 mm thick 304 stainless steel.
  • Operating temp: -20℃~ 55℃.
  • Operating humidity: 0-95%(relative humidity).
  • Surface mount: Optional NEMSMB metal back box.
  • Installation diameter: 19 mm.
  • Fixing centres: 83 mm.
  • Dimensions: 115 (L) x 40 (W) x 25 mm (D).
  • Weight: 0.044kg.

Technical Specifications

Brand NEPTUNE
Finish Stainless Steel
Current Rating 3 A at 125 Vac to 250 Vac
Momentary Yes
Depth in mm 25
Grade of Stainless Steel 304
Overall Length in mm 115
Width in mm 40
Text or Symbol on Plate PRESS TO EXIT
Touch or Touchless Operation Touch
