Neptune Press to Exit,Latching,ANSI,NO/NC/C,1.7mm SS,Mushroom,Red
Description

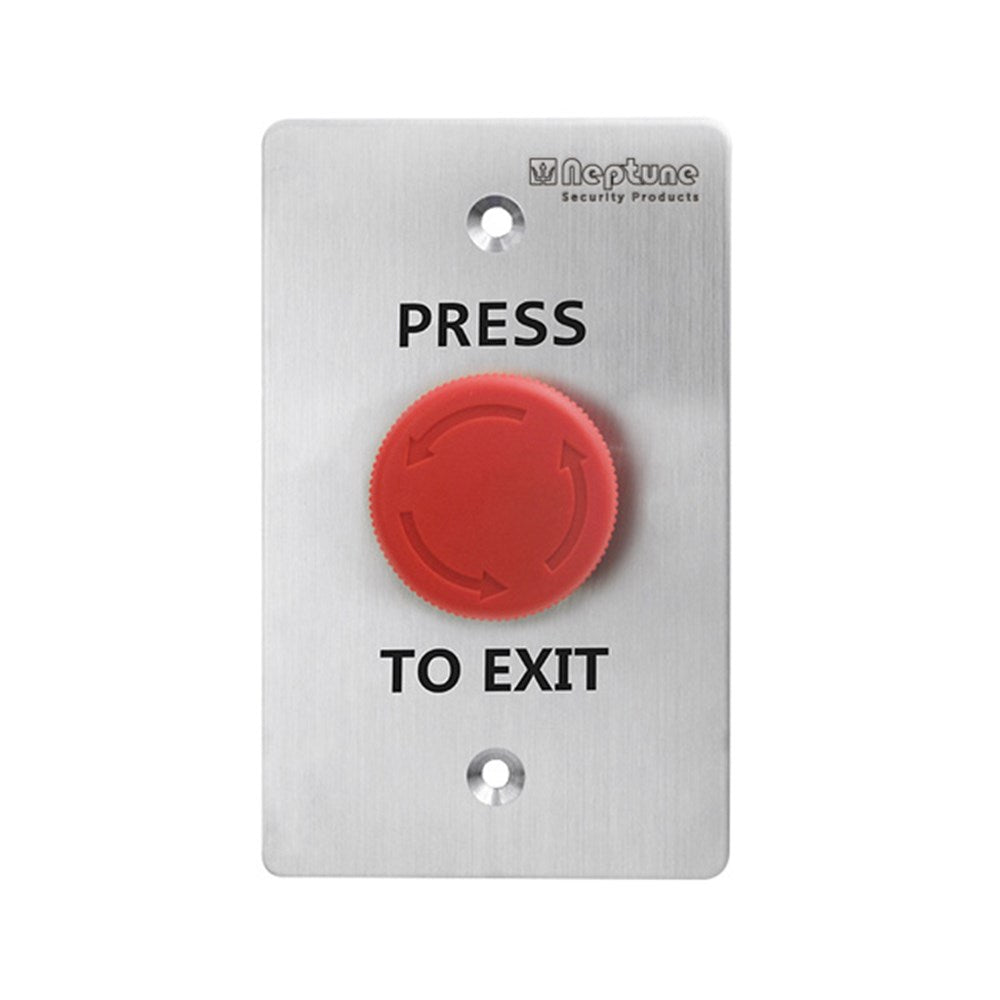

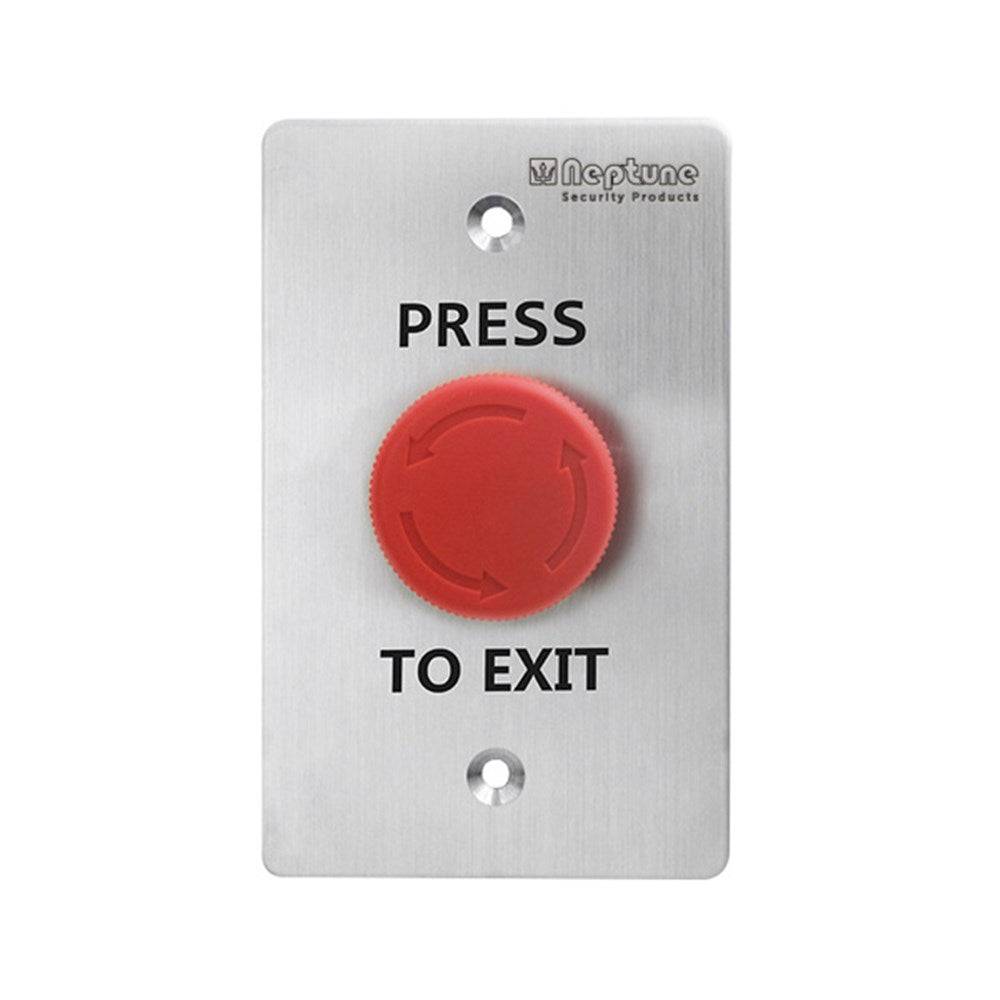

Neptune latching "Press to Exit" red mushroom button.
- Contact rating: 5A/125-250VAC.
- Mushroom diameter: 37 mm.
- Output contact: NO/NC/COM.
- Mechanical life: 100,000 tested.
- Panel: 1.7 mm thick 304 stainless steel.
- Operating temp: -20℃~ 55℃.
- Operating humidity: 0-95%(relative humidity).
- Installation diameter: 37 x 37 mm.
- Fixing centres: 83 mm.
- Dimensions: 115 (L) x 70 (W) x 38 mm (D).
- Weight: 0.2kg.
Technical Specifications
| Brand | NEPTUNE |
| Finish | Stainless Steel/Red |
| Current Rating | 5 A at 125 Vac to 250 Vac |
| On/Off | Yes |
| Depth in mm | 38 |
| Grade of Stainless Steel | 304 |
| Overall Length in mm | 115 |
| Width in mm | 70 |
| Text or Symbol on Plate | PRESS TO EXIT |
| Touch or Touchless Operation | Touch |
