Neptune
Neptune Press to Exit,ANSI,IP65,NO/NC/C,1.7mm SS,Mushroom,Green
Neptune Press to Exit,ANSI,IP65,NO/NC/C,1.7mm SS,Mushroom,Green
Regular price
$35.00 AUD
Regular price
Sale price
$35.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Neptune Press to Exit,ANSI,IP65,NO/NC/C,1.7mm SS,Mushroom,Green
Description

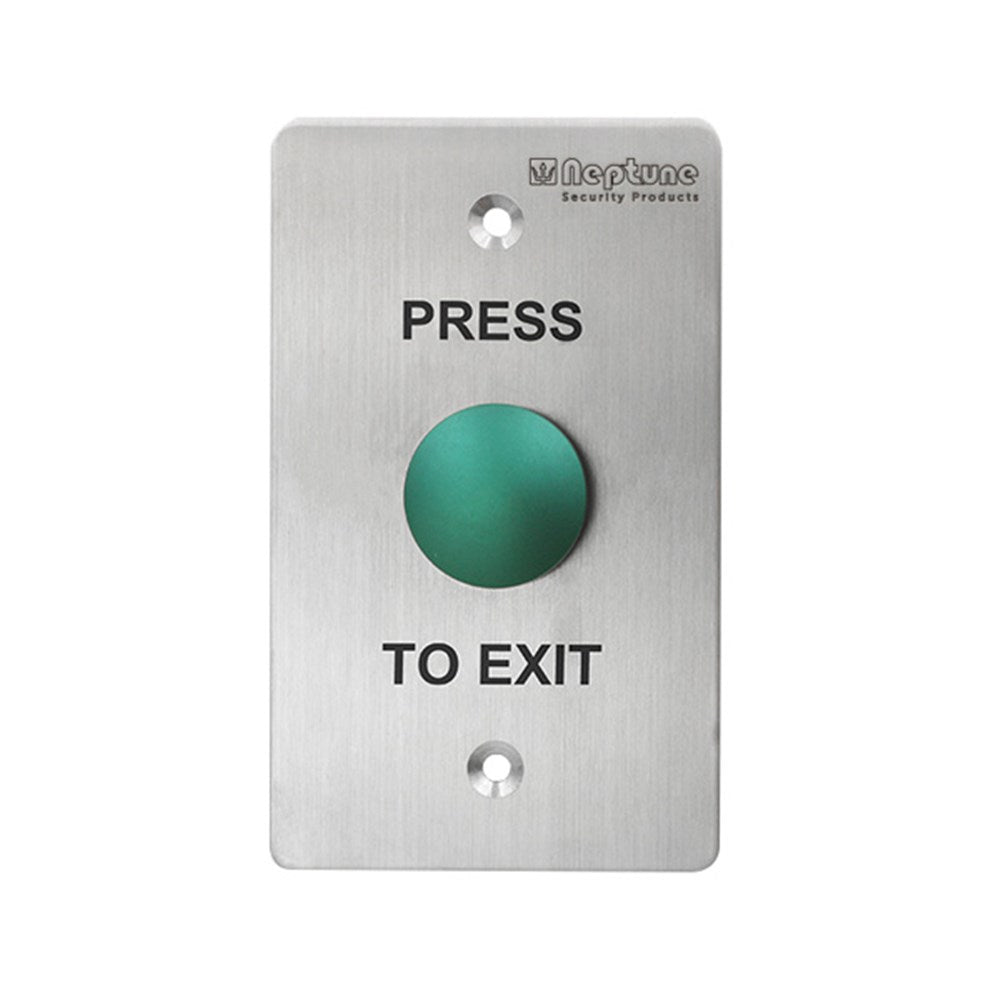

Neptune "Press to Exit" green mushroom button.
- Contact rating: 3A/125-250VAC.
- Power: 12VDC.
- Mushroom diameter: 28 mm.
- Output contact: NO/NC/COM.
- Mechanical life:100,000 tested.
- Panel: 1.7 mm thick 304 stainless steel.
- Operating temp: -20℃~ 55℃.
- Operating humidity: 0-95%(relative humidity).
- Surface mount: Optional NEASMB metal back box.
- Installation diameter: 22 mm.
- Fixing centres: 83 mm.
- Dimensions: 115 (L) x 70 (W) x 25 mm (D).
- Weight: 0.125kg.
- IP rating: IP65.
Technical Specifications
| Brand | NEPTUNE |
| Finish | Stainless Steel/Green |
| IP Rating | IP65 |
| Current Rating | 3 A at 125 Vac to 250 Vac |
| Momentary | Yes |
| Depth in mm | 25 |
| Grade of Stainless Steel | 304 |
| Overall Length in mm | 115 |
| Width in mm | 70 |
| Text or Symbol on Plate | PRESS TO EXIT |
| Touch or Touchless Operation | Touch |
