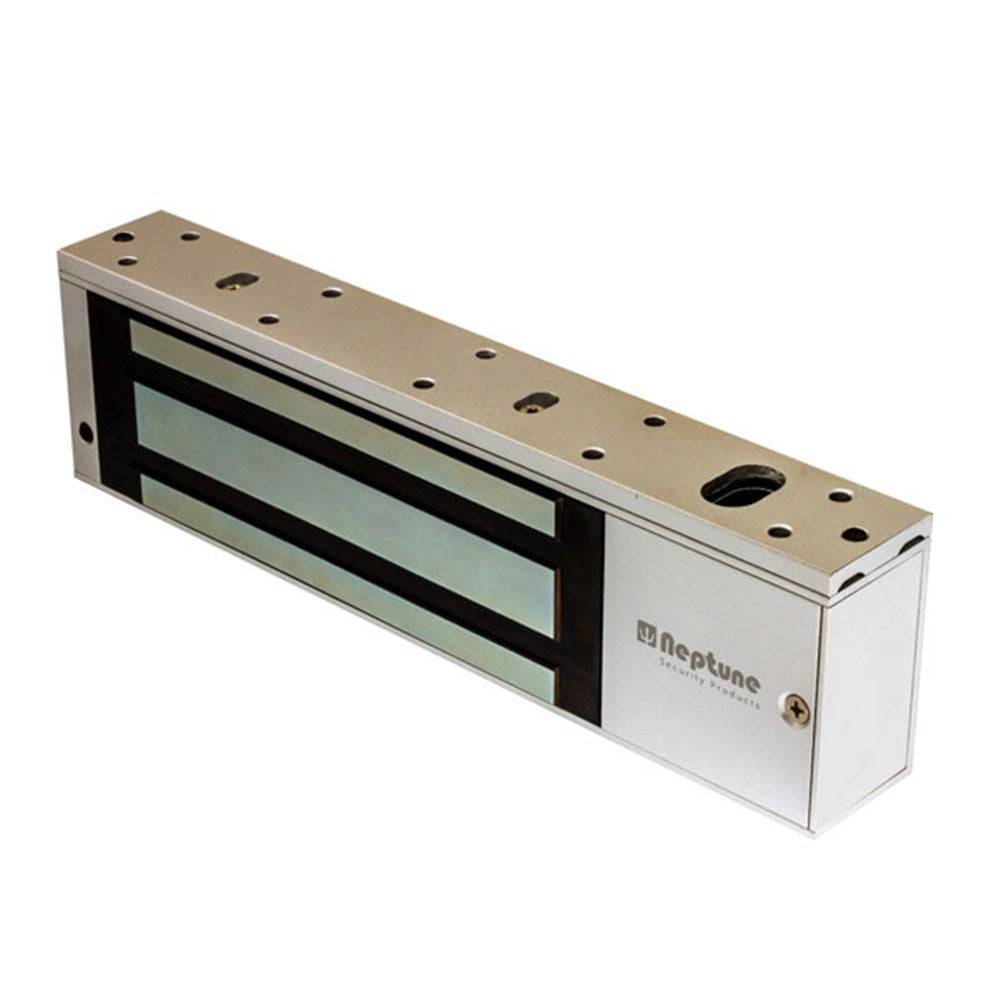

• Neptune Door Maglock - 500kg Maglock in silver finish for single door with LED indicator. Ideal for secure indoor access control systems.

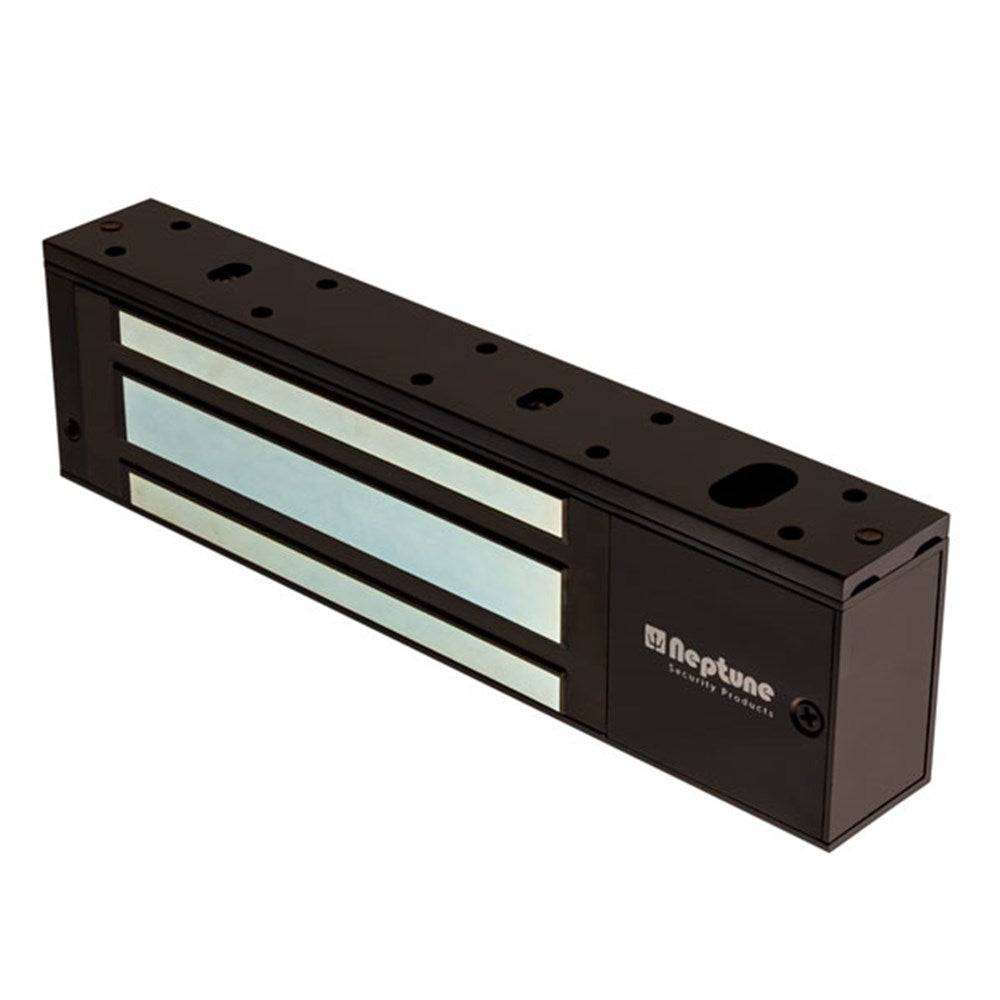

  • Neptune Door Maglock - 500kg Maglock in black finish, single door use with LED, status sensor, and time delay for electronic locking solutions.
1 2

Neptune

Neptune Maglock Single Door, 500kg

Neptune Maglock Single Door, 500kg

$257.00 AUD
$257.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color

Neptune Maglock Single Door, 500kg

Description

Neptune monitored single door maglock.

Suitable for Indoor use only.

  • Single door monitored magnetic lock.
  • Dual voltage 12vdc @ 480mA, 24vdc @ 240mA.
  • Monitored, door status sensor.
  • LED indicator.
  • The overload current of relay contact is 1amp.
    .Overload is strictly prohibited for voltage of 24V-DC.
  • Built-in time delay 0, 3, 6 or 9 seconds.
  • Holding force up to 500kgs per magnet.
  • Satin anodised aluminium housing.
  • Zinc plated electromagnetic body.
  • Magnet size 265 (L) x 71 (H) x 40 mm (D).
  • Armature plate 185 (L) x 60 (H) x 13 mm (D).
  • Weight 4.5kg.
  • L and Z mounting brackets are also available.

Technical Specifications

Brand NEPTUNE
Finish Satin Anodised
Working Voltage 12 Vdc to 24 Vdc
Door Status Sensor Yes
Holding Force In Kg 500
LED Indicator Yes
Time Delay Yes
Single Or Double Door Maglock? Single
Monitoring Monitored
