Neptune Maglock Double Door, 500kg
Description

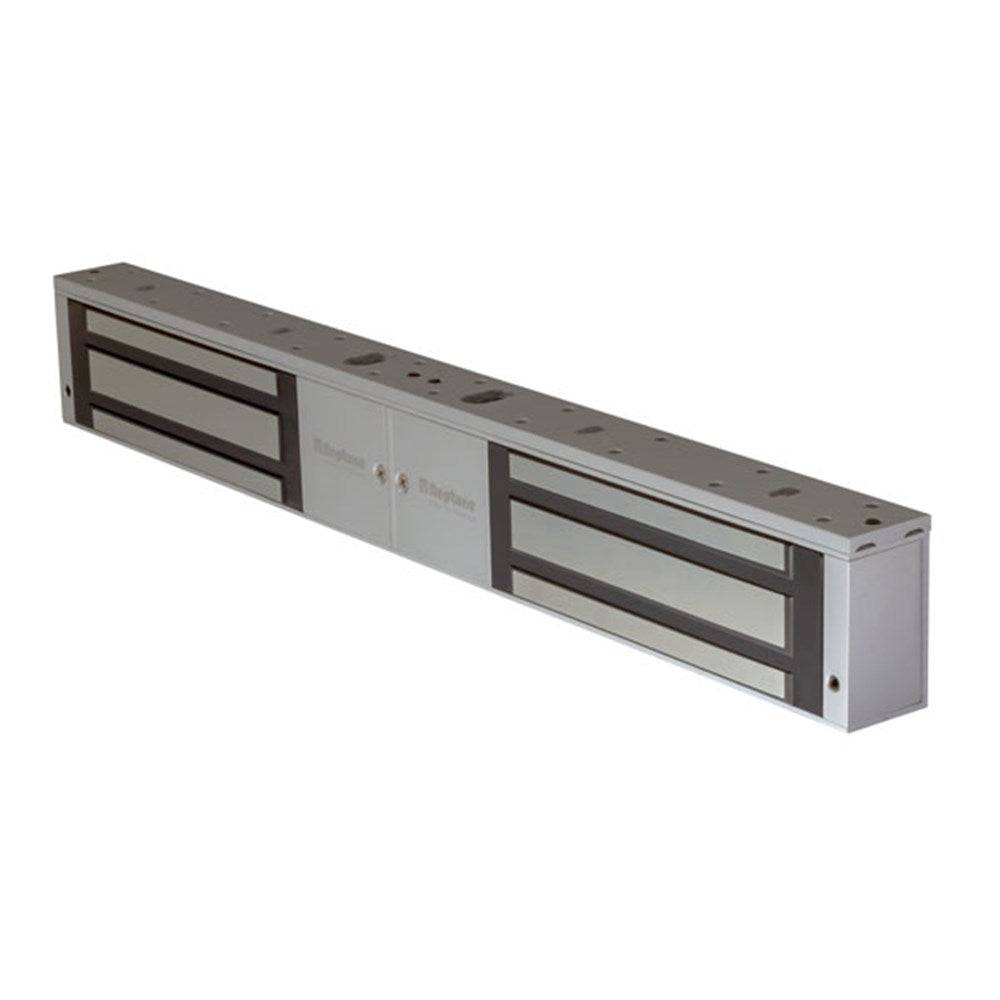

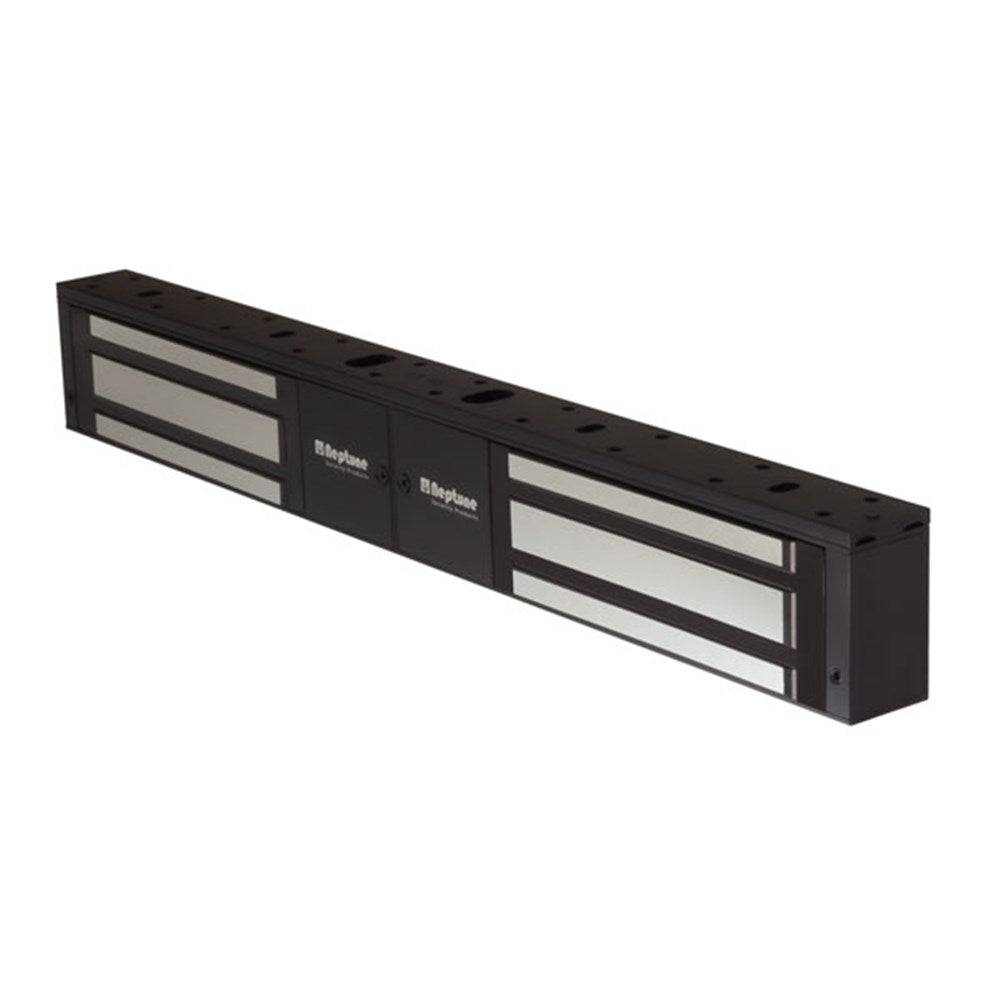

Neptune monitored double door maglock.
Suitable for Indoor use only.
- Double door monitored magnetic lock.
- Dual voltage 12vdc @ 480mA, 24vdc @ 240mA per magnet.
- Monitored, door status sensor.
- LED indicator.
- The overload current of relay contact is 1amp.
.Overload is strictly prohibited for voltage of 24V-DC. - Built-in time delay 0, 3, 6 or 9 seconds.
- Holding force up to 500kgs per magnet.
- Matt black aluminium housing.
- Zinc plated electromagnetic body.
- Magnet size 530 (L) x 71 (H) x 40 mm (D).
- Armature plates 185 (L) x 60 (H) x 13 mm (D).
- Weight 9kg.
- L and Z mounting brackets are also available.
Technical Specifications
| Brand | NEPTUNE |
| Finish | Matt Black |
| Working Voltage | 12 Vdc to 24 Vdc |
| Door Status Sensor | Yes |
| Holding Force In Kg | 500 |
| LED Indicator | Yes |
| Time Delay | Yes |
| Single Or Double Door Maglock? | Double |
| Monitoring | Monitored |
