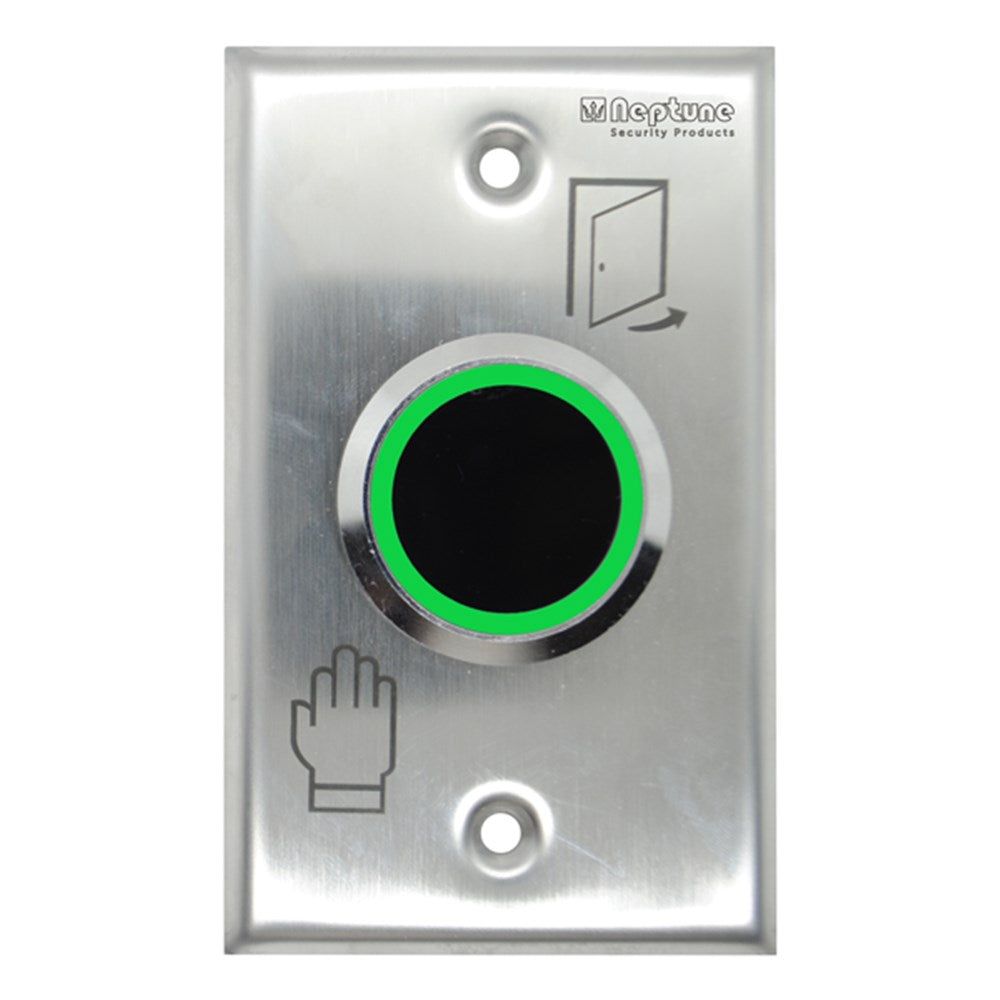

NEPTUNE INFRARED TOUCHLESS EXIT BUTTON, ANSI, IP65

Neptune IP65 touchless exit button with IR sensor, LED indicator, Range Adjustment, Open Delay, Toggle.

• Sealing protection Infrared Button: IP65
• Output loading: 1A@DC30V(Max).
• Power: 12-24VDC.
• Current Consumption: Maximum current 45mA@24VDC.
• Output contact: NO/NC/COM.
• Output State: Trigger state (0.5~30sec) or toggle mode output.
• Life Time: Infrared sensor:100,000 hours / Relay mechanical lifespan:1,000,000.
• Detection range: 4 – 15cm (adjustable).
• LED indicator: Default: Red LED Indicator (Standby), Green LED Indicator (Action)
                                               LED colour can be reversed using Jumper.
• Panel: 0.7 mm thick 304 stainless steel.
• Operating temp: -10℃~ 70℃.
• Surface mount: Optional NEASMB metal back box.
• Installation diameter: 38 mm.
• Fixing centres: 83 mm.
• Dimensions: 115 (L) x 70 (W) x 16.5 mm (D).
• Weight: 50g.
