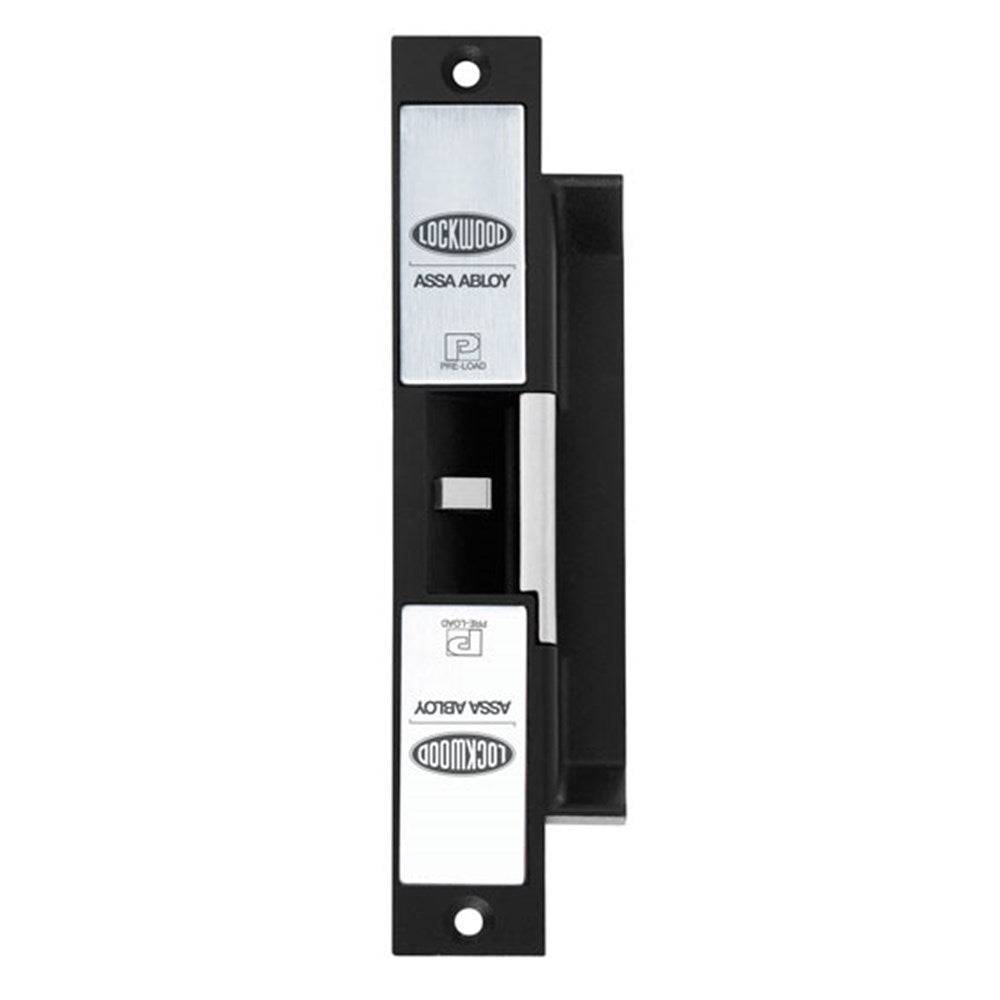

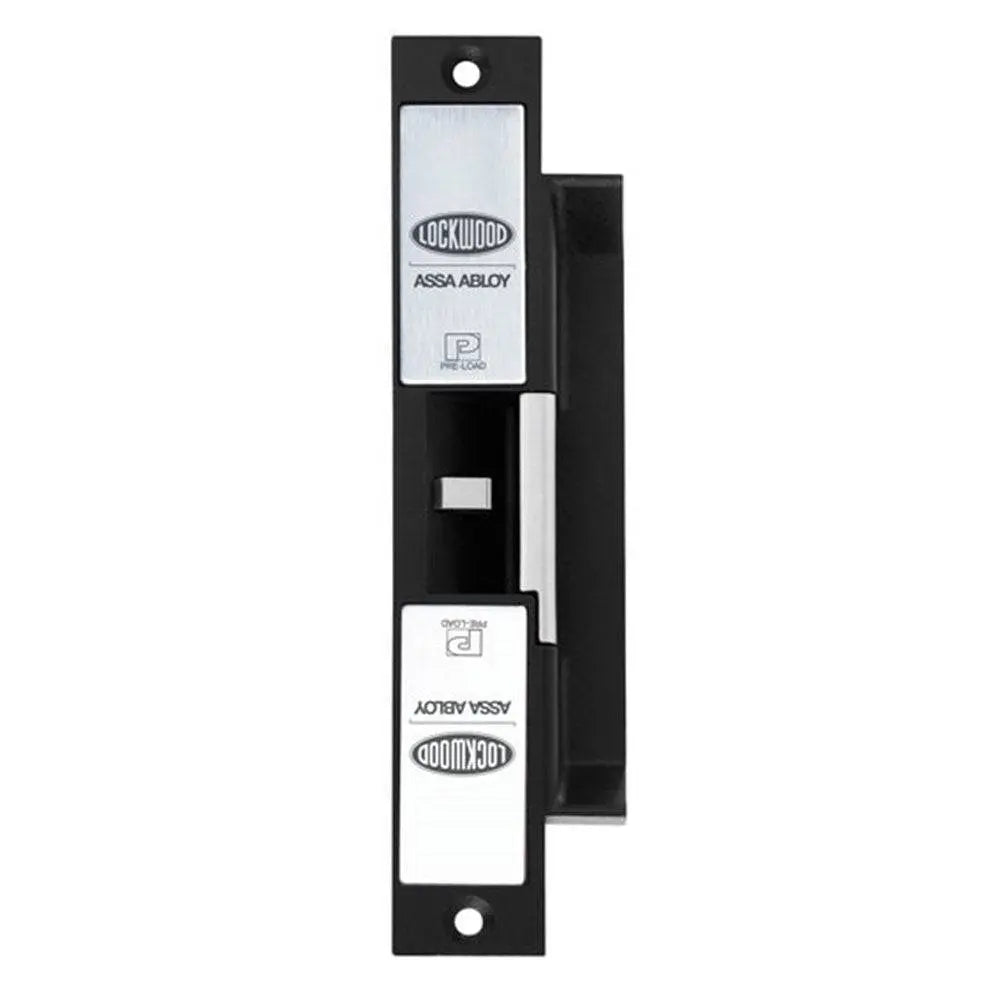

Lockwood Padde ES9000 12VDC to 30VDC Electric Strike with 25kg Pre-Load, Fully Monitored Multi-Function with Lip Holes, Field Changeable Fail Secure, 4 Hour Fire Rated and SCEC Approved

The ES9000 electric strike is a high security product manufactured from solid stainless steel and designed to be used with most access control systems.

4 hour fire rating. And Australian Government listed.

The ES9000 is designed, developed and manufactured in Melbourne.

Approved for Security Level 3

ES9000 - Pre-load (side pressure) testing

The ES9000 overcomes the real life issue of side pressure, commonly known as pre-load, easily opening with up to 25kg of pre-load applied to the strike. Pre-load is commonly caused by pulling on a door before it unlocks, by the weight of warped or drooping doors or by differential air pressure created by heating and cooling systems.

• Includes lip holes.
• Operates under pre-load up to 25kg.
• 4hrs fire rating when used with an approved door set.
• Suitable for use on hinged doors with fire or security requirements.
• Field selectable fail safe / fail secure.
• Equipped with a silencer pad on the keeper which significantly reduces noise when the strike is operated.
• Fully monitored - strike locked and door closed status.
• Solenoid monitor - 1 amp NO/NC microswitch.
• Door/latch monitor - 1 amp NO/NC microswitch.
• Stainless steel striker.
• Suitable for 15 mm latch and 3 mm door gap.
• 3 hardened locking pins.
• Solenoid can be continuously powered.
• Self adhesive installation template.
• Multi Voltage 10Vdc - 30Vdc.
• 250mA @12Vdc - 130mA @24Vdc.
• 1300kg static strength rating.
• 1,200,000 cycles endurance rating @ 25kg pre-load.
• Australian designed and made Approvals / Certifications C-Tick & CE compliant.
• Solenoid rated for continuous use.
• Built in protection diode.
• Mounting tabs as supplied standard.
• Weather resistant (IP54).
