HIK KD8 Series Pro Modular Door Station

HIK KD8 Series Pro Modular Door Station

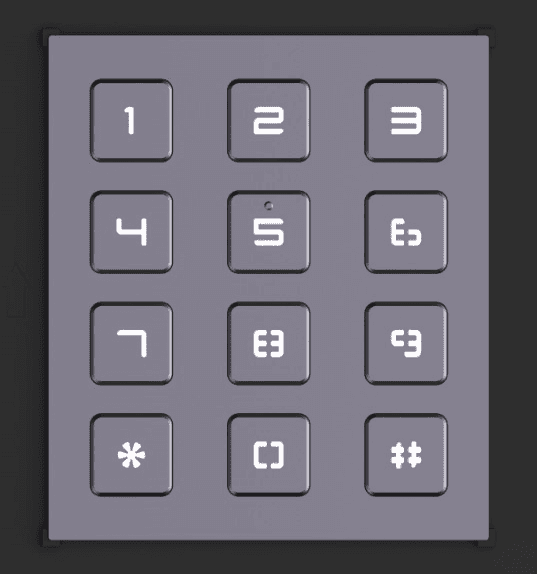

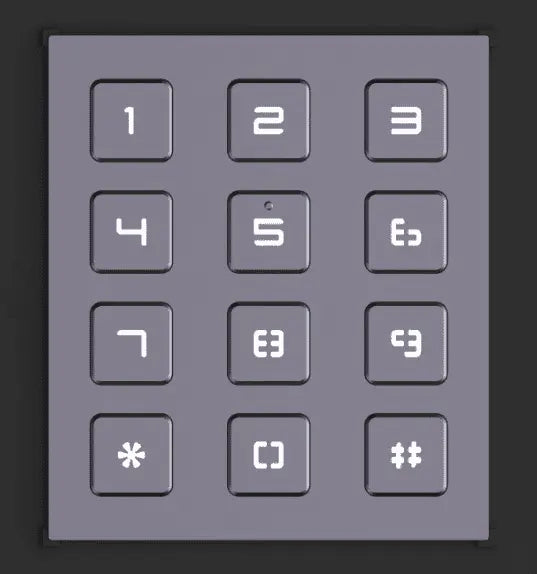

• Keypad module of modular door station
• Supporting input pin code to open door, call indoor station
• IP65 and IK07 higher protection level
• Backlight compensation behind the keypad buttons
• Easy to use and extend

System parameters

• Operating system - Embedded Linux operation system
• ROM - /
• RAM - /
• CPU - Embedded MCU Processor

Display parameters

• Screen size - /
• Operation method - /
• Type - Not supported.
• Resolution - /

Video parameters

• Lens - /
• Resolution - /
• FOV - /
• WDR - Not supported.
• Supplement light - Not supported.
• Video compression standard - /

Audio parameters

• Audio compression standard - /
• Audio input - /
• Audio output - Not supported.
• Audio compression bitrate - /
• Audio quality - /
• Volume adjustment - /

Capacity

• User capacity - /
• Face capacity - Not supported.
• Card capacity - /
• Linked network camera capacity - /

Network parameters

• Communication protocol - /
• Wired network - /
• Wi-Fi standard - Not supported.
• Bluetooth version - /
• 3G/4G standard - /

Device interfaces

• Alarm input - /
• Network interface - /
• TAMPER - Not supported.
• Exit button - /
• RS-485 - 1
• USB - /
• Wiegand - /
• TF card - /
• Alarm output - /
• Lock control - /
• Door contact input - /
• Power interface - 1

Performances

• Multi-factor authentication - /

General

• Button - 12
• Installation - Flush mounting, surface mounting
• Indicator - /

• With package: 529 g

  Without package: 265 g

• Protective level - IP65, IK7
• Working temperature - -40° C to +55° C(-40° F to 131° F)
• Working humidity - 10% to 95%
• Dimensions - 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
• Battery - /
• Application environment - Outdoor
• Power consumption - 1 W
