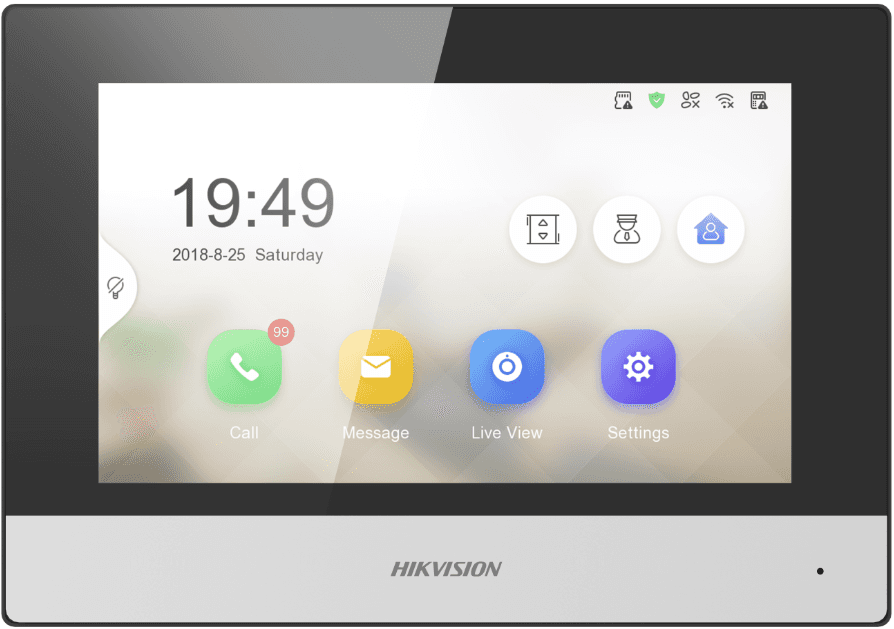

Hik IP 7" Colour Indoor Station Monitor

Hik IP 7" Colour Indoor Station Monitor

• 7-inch IPS touch screen 2-Wire IP indoor station with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Easy to use without PC
• Easy wizard for quick set up
• Configure the whole system on one touch screen
• Live view of the door station and cameras in public areas
• Support voice messages when no response from the indoor station
• Receive alarms by linkage with a alarm system and notify the center to handle in time
• Elevator access control

System parameters

• Operation system - Embedded Linux operation system
• ROM - 32 MB
• RAM - 128 MB
• Processor - Embedded processor

Display parameters

• Screen size - 7-inch
• Operation method - Capacitive touch screen
• Type - TFT
• Resolution - 1024 × 600

Audio parameters

• Audio input - Built-in omnidirectional microphone
• Audio compression standard - G.711 U、G.711 A、G.722.1
• Audio output - Buit-in loudspeaker
• Audio compression bitrate - 64 Kps
• Audio quality - Noise suppression and echo cancellation
• Volume adjustment - Adjustable

Capacity

• Message capacity - 200 captured pictures (with TF card); 200 alarm records

  2 MB RAM (without TF card) reserved for events

• Notice capacity - 200
• Linked network camera capacity - 16
• Linked indoor extensions capacity - 16
• Linked doorphone capacity - 17 IP doorphones Max.

Network parameters

• Network protocol - TCP/IP, SIP, RTSP
• Wi-Fi - IEEE802.11b, IEEE802.11g, IEEE802.11n
• Bluetooth - /
• 3G/4G - /
• Zigbee - /

Device interfaces

• Alarm input - 8-ch alarm inputs
• TAMPER - /
• RS-485 - 1
• USB - /
• TF card - Max to 128 G, SD 2.0 or lower version
• Alarm output - 2 relays (30 V Max.)
• Lock control - 2 relays, Max. to 30 VDC, 0.3 A
• Two-Wire IP interface - 1

General

• Button - /
• Installation - Surface mounting
• Indicator - /

• Net weight: - 0.325 kg

  Gross weight: -  0.650 kg

• Protective level - /
• Working temperature - -10 °C to 50 °C (14 °F to 122 °F)
• Working humidity - 10% to 90% (no-condensing)
• Dimension (W × H × D) - 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
• Battery - /
• Power supply - Powered by KAD704Y or KAD706Y series distributor
• Application environment - Indoor
• Power consumption - ≤ 4 W
• Language - English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
