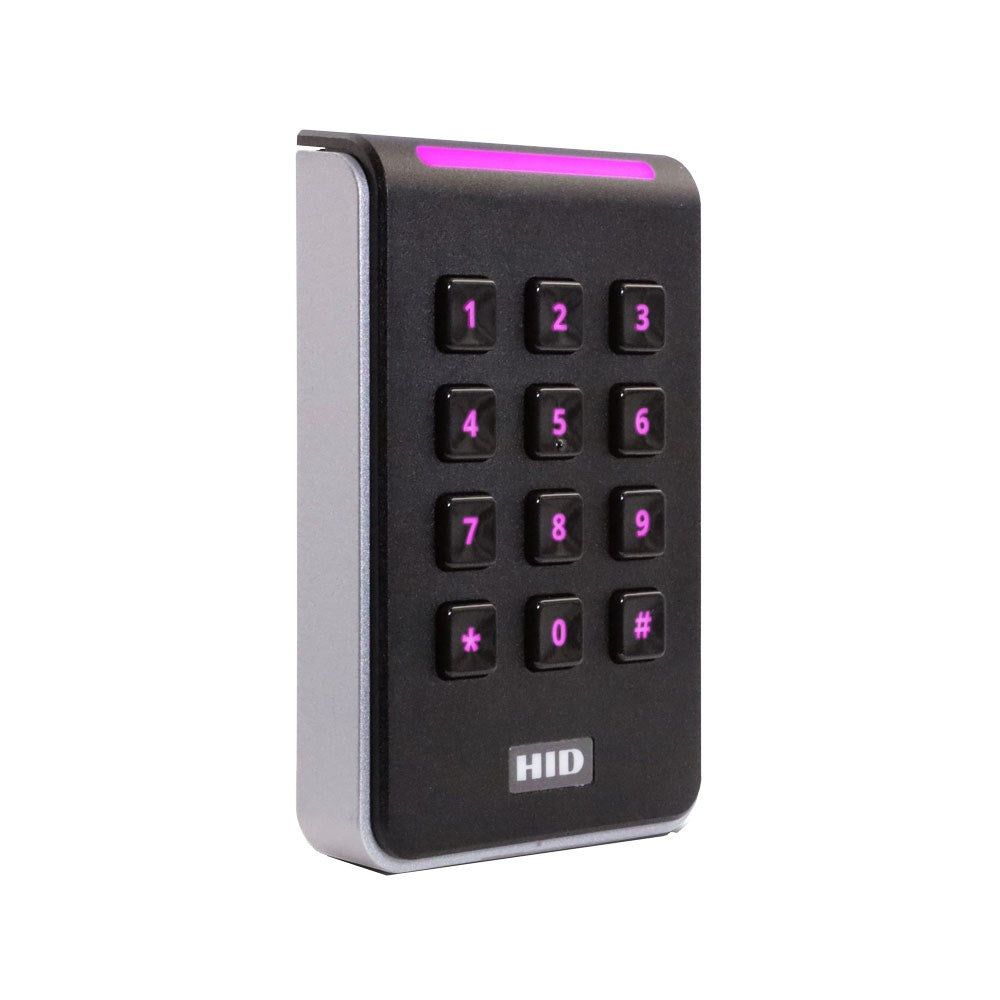

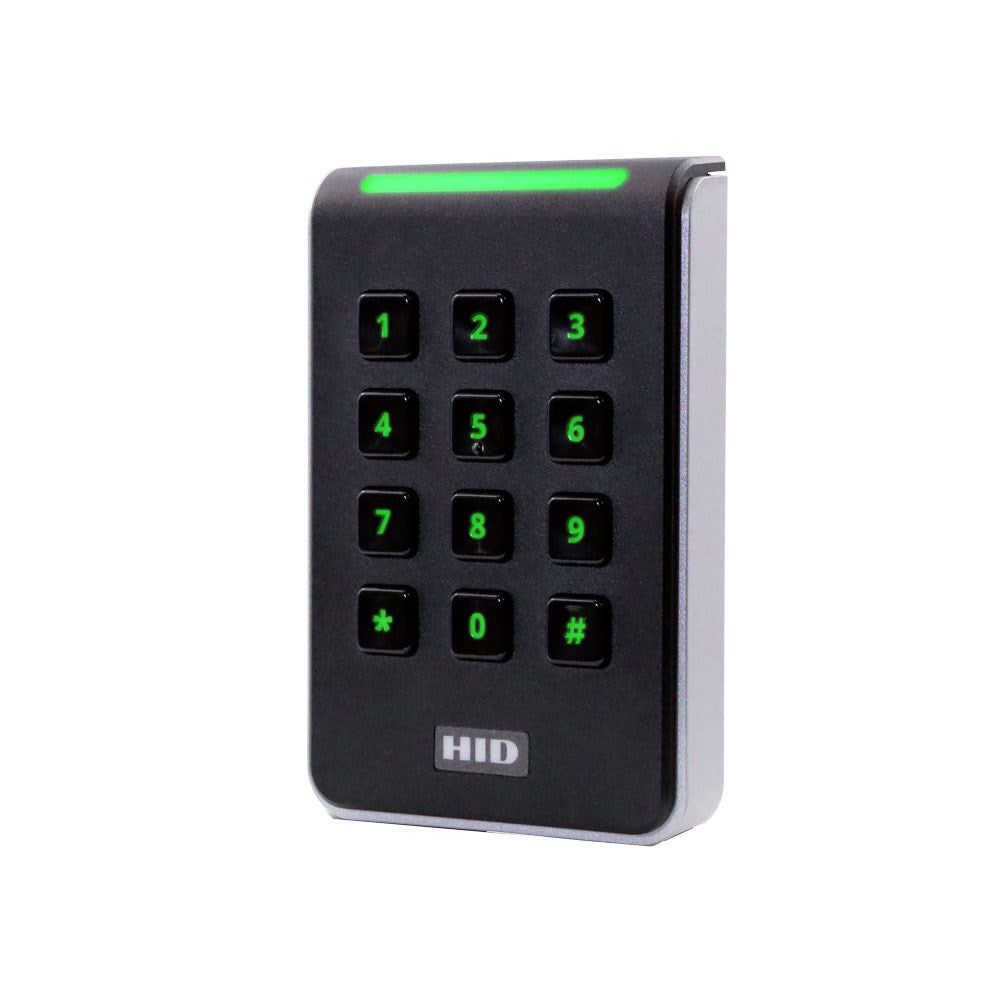

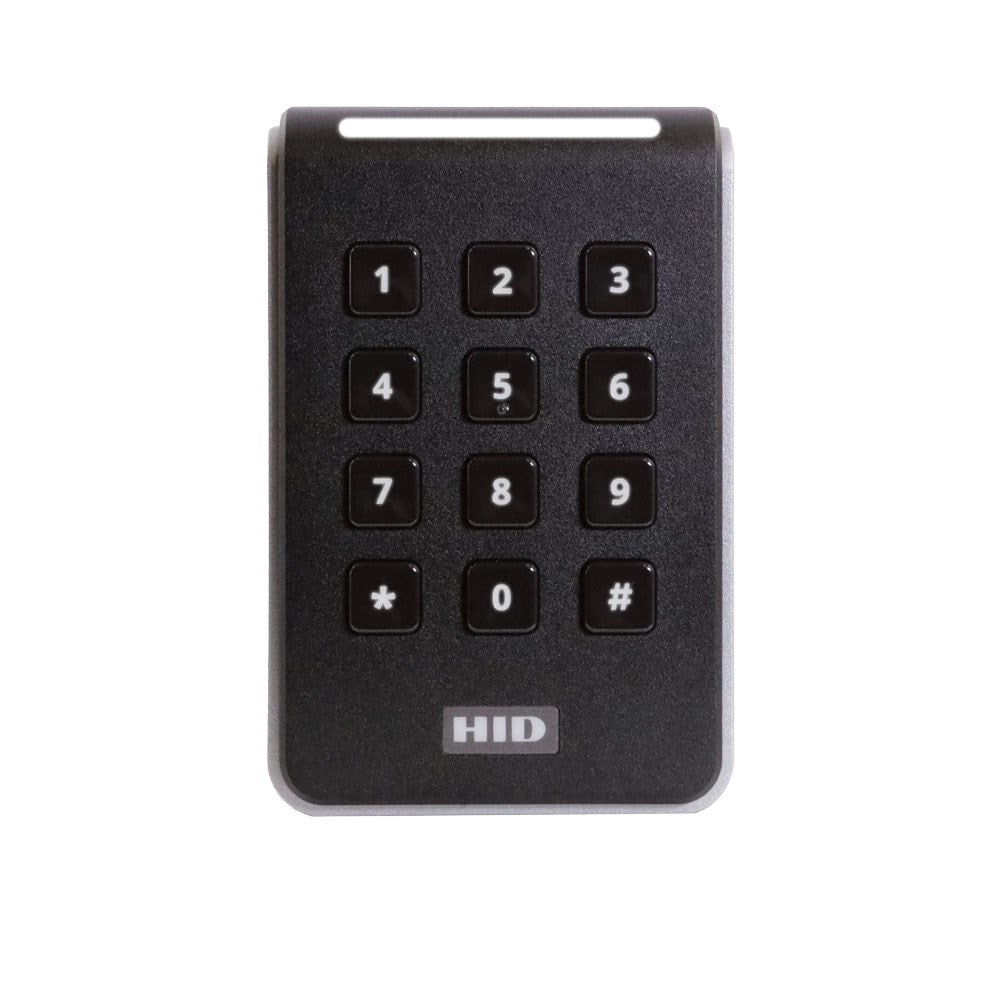

HID Signo 40T Series Keypad Reader Standard Profile with Terminal Strip Connection

The HID Signo™ Mechanical Keypad Reader 40T provides a high-performance, reliable option for harsh environments and a broader choice of Signo reader technology, especially when there is a preference or specification for a traditional mechanical device.

Offering robust, positive user feedback, the Signo Mechanical Reader is ideal for use cases where cold and wet weather conditions require gloved hands or when users may have low visibility.

A perfect fit for door applications requiring a wall switch mount, the mobile-ready Signo Keypad Reader 40T supports an unparalleled range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.

• Supported Credentials: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, Mobile Credentials powered by Seos (HID Mobile Access), HID Proximity®, Indala® Proximity, AWID Proximity, and EM Proximity.
• High Frequency Read Range: 4 – 10 cm.
• Low Frequency Read Range: 6 – 10 cm.
• Terminal Block connection.
• Mobile Credential connectivity via NFC / Bluetooth.
• Mounting: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back box spacing.
• 3x4 Layout Keypad (Bit or buffered mode configurable).
• Dimensions: 80 x 122.5 x 24.5 mm.
• Wiegand or RS485 Half Duplex (OSDP) configurable.
• Configurable with HID Reader Manager App (iOS and Android).
