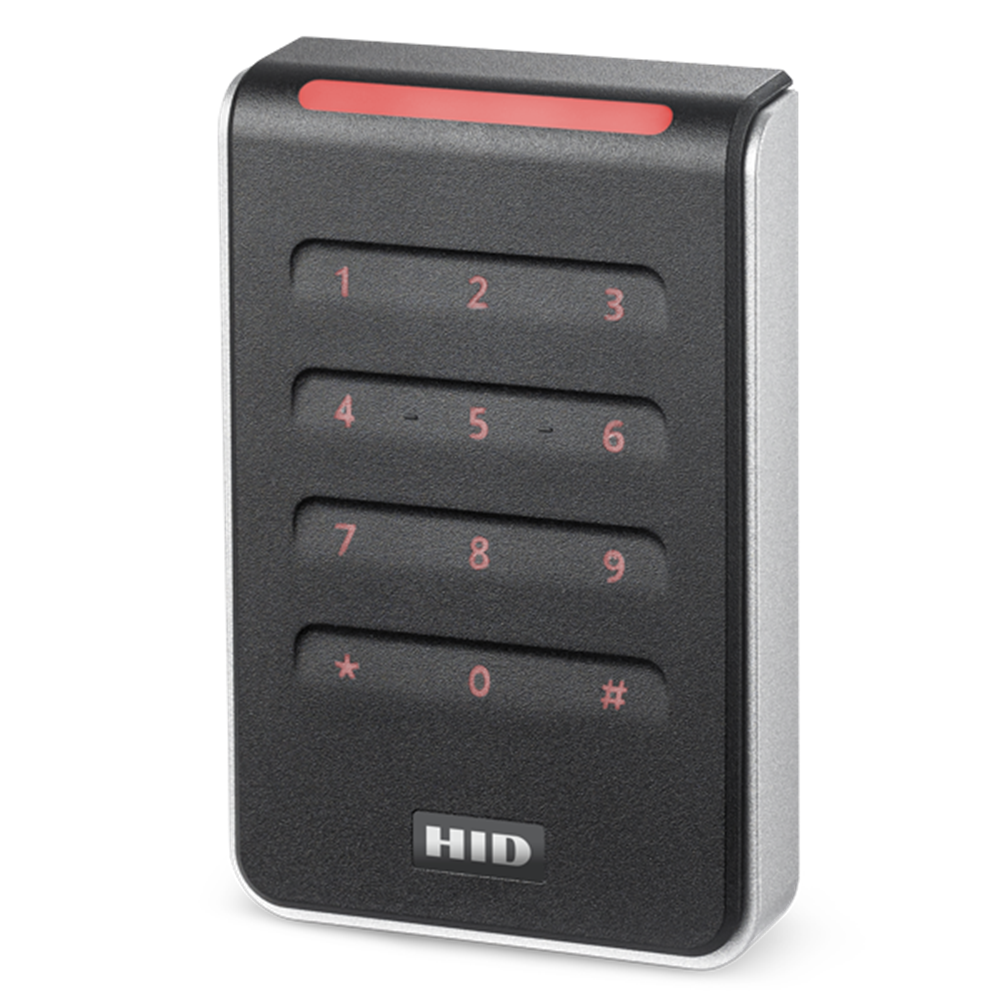

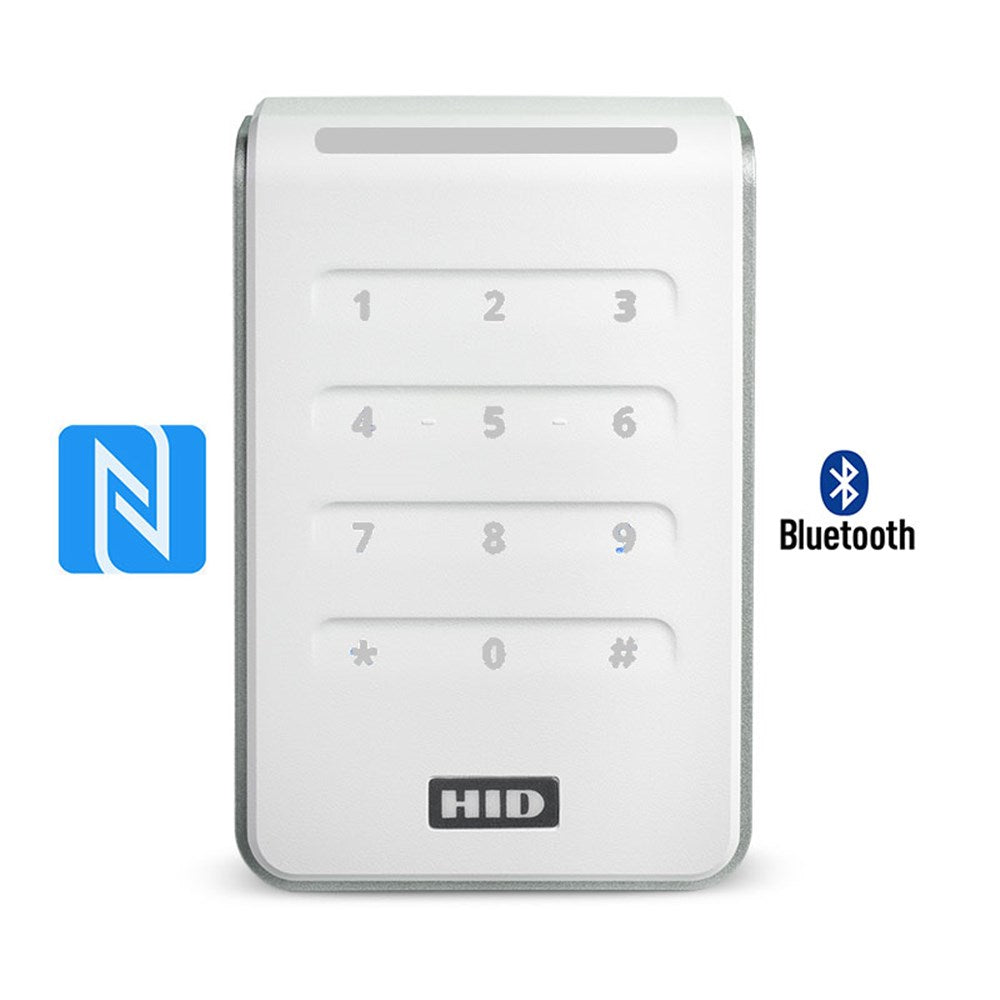

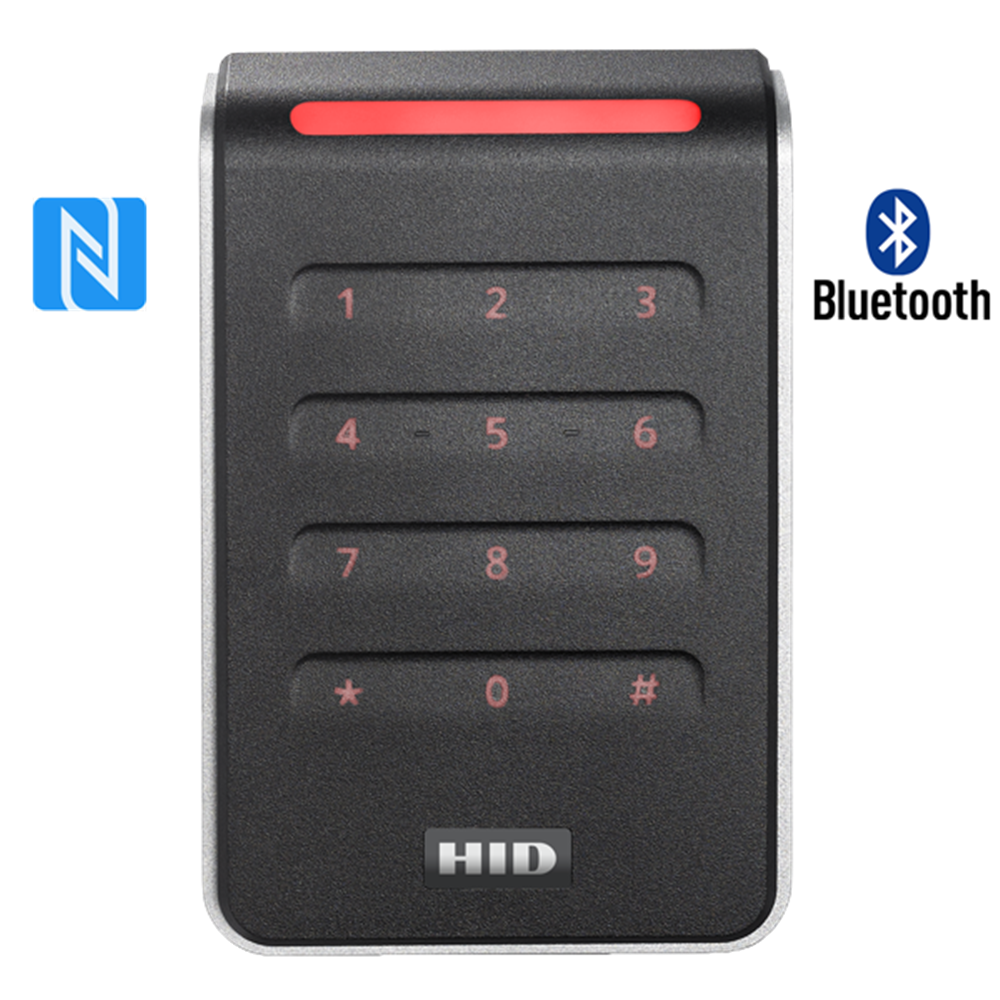

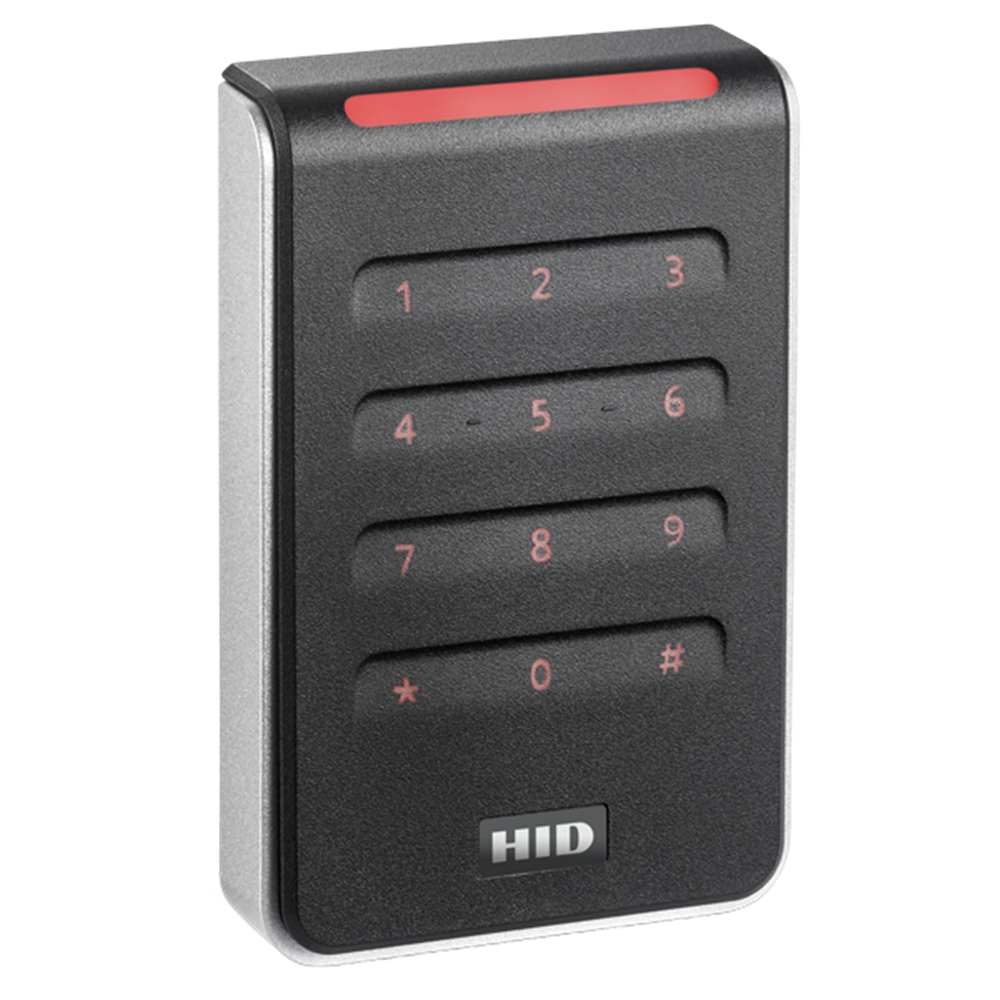

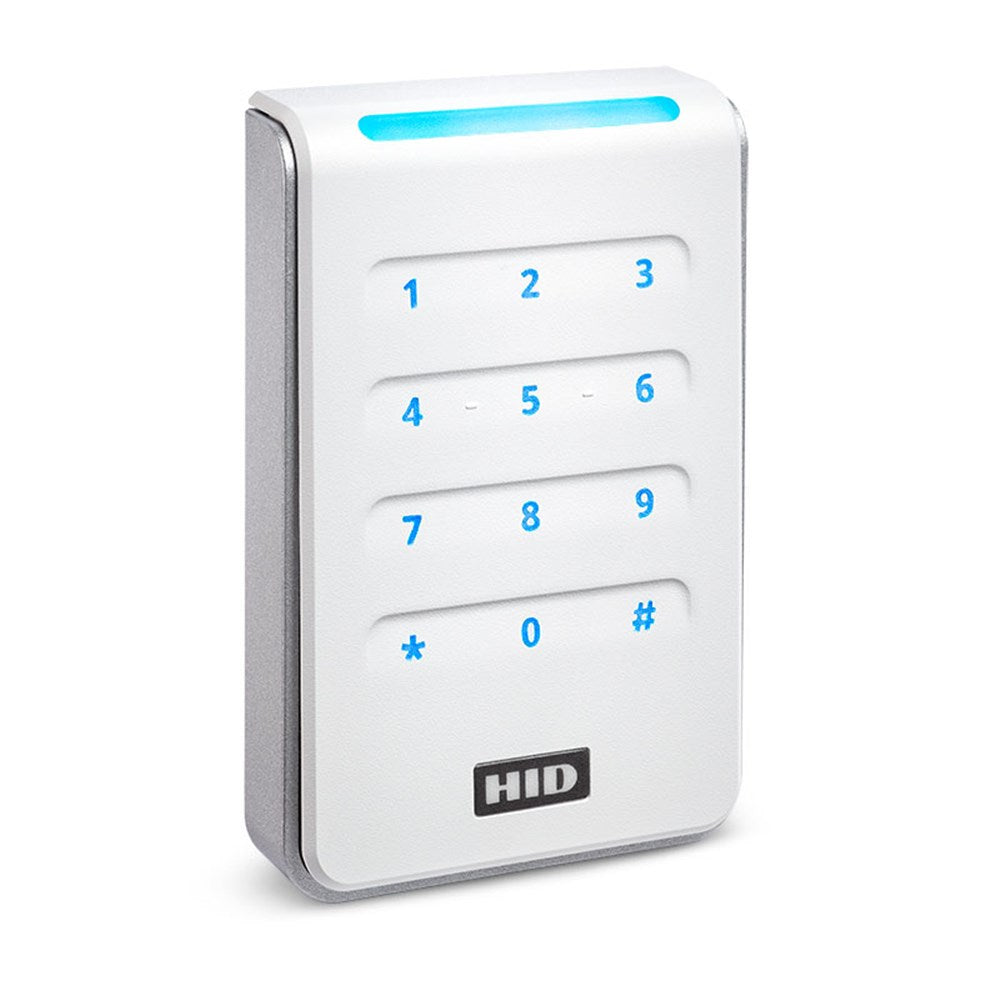

HID Signo 40K Series Keypad Reader Standard Profile with Pigtail Connection

The HID Signo™ Keypad Reader 40K is a founding member of the Signo platform. Offering a truly dynamic approach to secure electronic access control, HID Signo Readers are designed to be highly versatile, powerful, and connected for the future.

A perfect fit for multi-factor authentication door applications requiring a narrow keypad reader, the HID Signo Keypad Reader 40K supports an unparalleled range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.

• Supported Credentials: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, Mobile Credentials powered by Seos (HID Mobile Access), HID Proximity®, Indala® Proximity, AWID Proximity, and EM Proximity.
• High Frequency Read Range: 4 – 10 cm.
• Low Frequency Read Range: 6 – 10 cm.
• Mobile Credential connectivity via NFC / Bluetooth.
• Mounting: Suited to mount and cover single gang switch boxes with a slotted mounting plate for alternate back box spacing.
• 3x4 Layout Keypad (Bit or buffered mode configurable).
• Dimensions: 80 x 121.5 x 21.5 mm.
• Wiegand or RS485 Half Duplex (OSDP) configurable.
• Configurable with HID Reader Manager App (iOS and Android).
