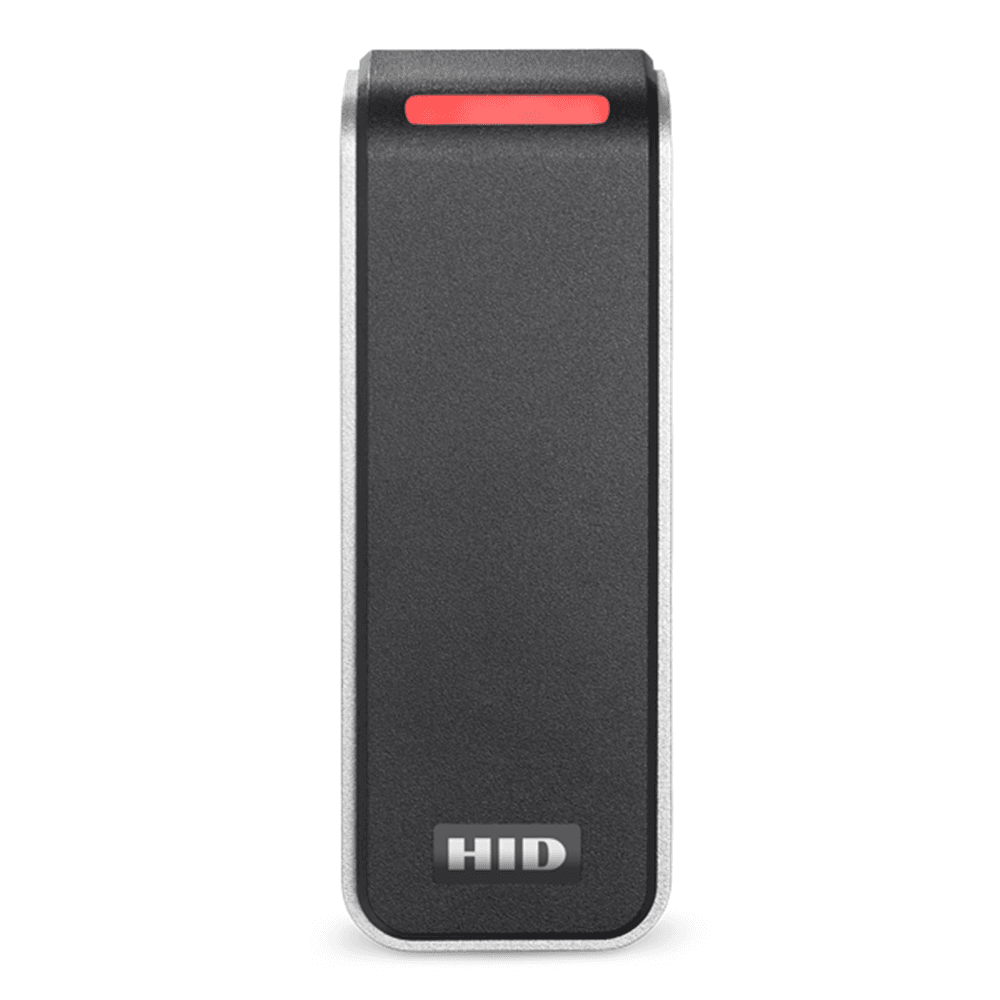

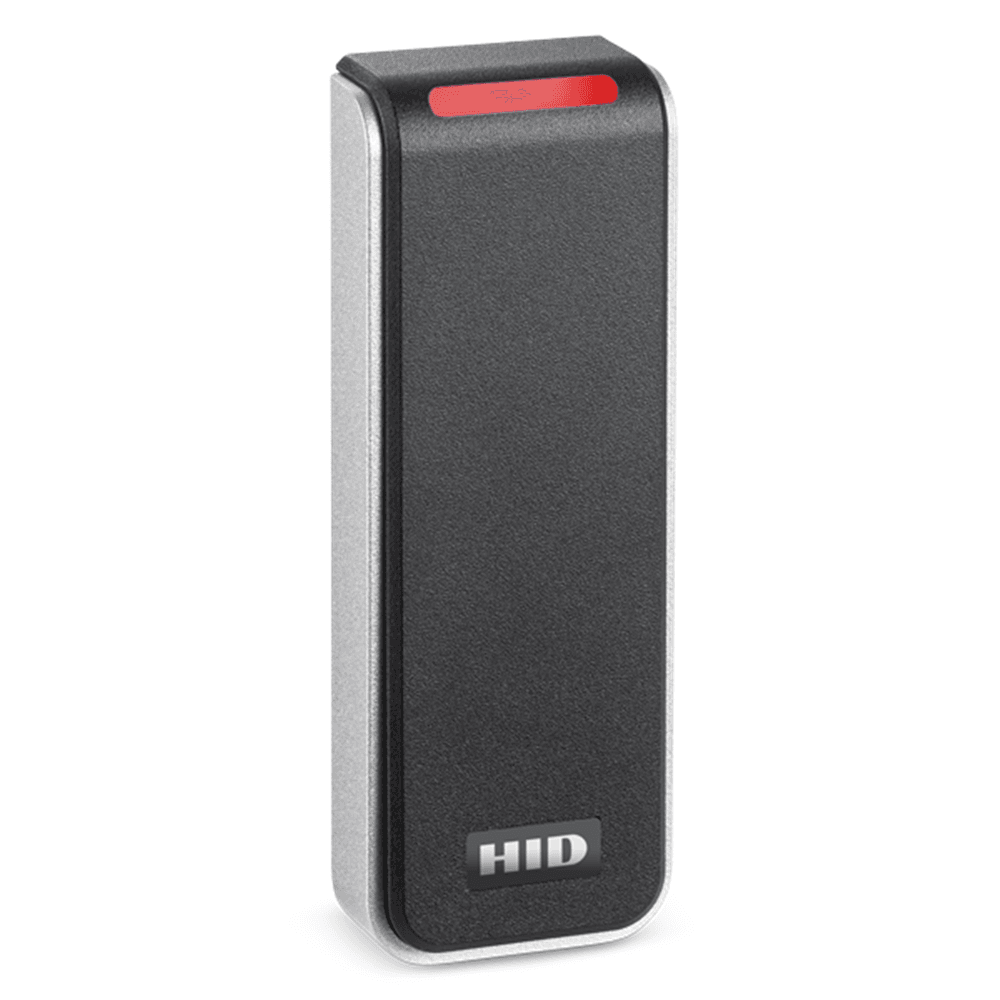

HID Signo 20 Series Reader Standard Profile with Pigtail Connection

The HID Signo™ Reader 20 is a founding member of the Signo platform. Offering a truly dynamic approach to secure electronic access control, HID Signo Readers are designed to be highly versatile, powerful, and connected for the future.

A perfect fit for multi-factor authentication door applications requiring a narrow card reader, the HID Signo Reader 20 supports an unparalleled range of different credential technologies in a variety of form factors including cards, fobs and mobile devices.

• Supported Credentials: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1/EV2, Mobile Credentials powered by Seos (HID Mobile Access), HID Proximity®, Indala® Proximity, AWID Proximity, and EM Proximity.
• High Frequency Read Range: 4 – 8 cm.
• Low Frequency Read Range: 6 – 8 cm.

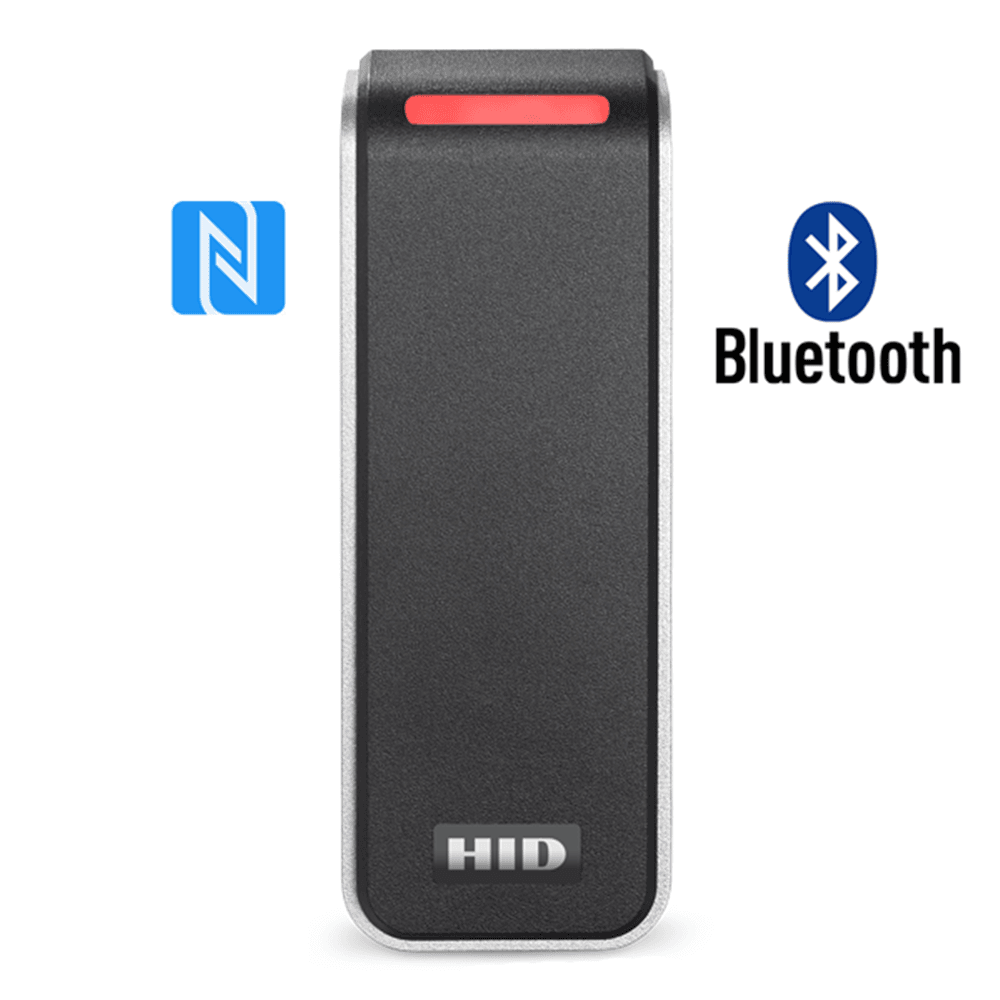

• Mobile Credential connectivity via NFC / Bluetooth.
• Mounting: Suited for mullion mount door installation or any flat surface mounting.
• Dimensions: 45 x 121.5 x 21.5 mm.
• Wiegand or RS485 Half Duplex (OSDP) configurable.
• Configurable with HID Reader Manager App (iOS and Android).
