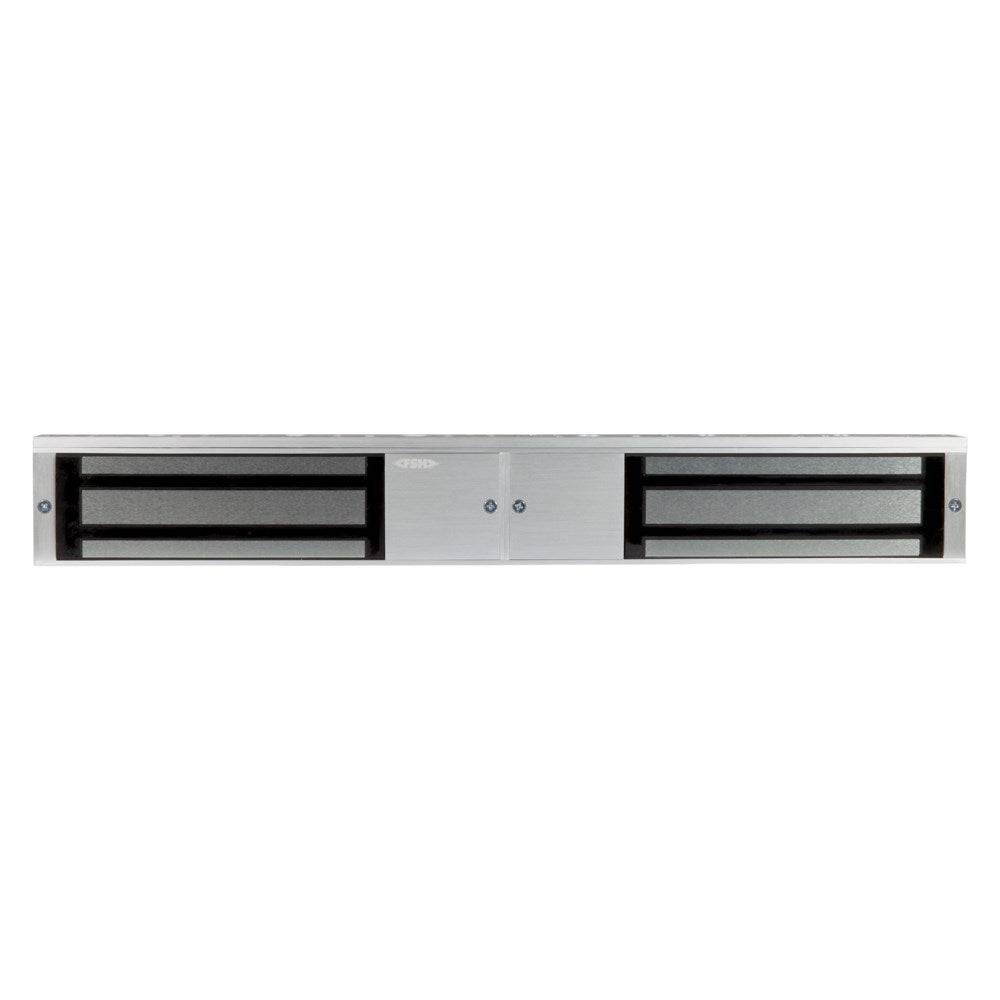

FSH FEM6600DM 580kg Double Maglock, Fully Monitored, 2 Hour Fire Rated

FSH FEM6600 series maglocks to suit double doors monitored.

5 year mechanical warranty and a holding strength of up to 580kg per magnetic lock.

Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

• Dual Voltage: 12 /24 VDC field selectable
  12VDC@ 500mA 24VDC@ 250mA.
• Door and Lock Status Monitoring Sensor (DSS and LSS S with “M” Models).
• Built-in varistor (MOV) surge protection.
• Red-Green bicolour LED on monitored version.
• No residual magnetism.
• Holding force up to 580kgs per magnetic lock.
• Satin anodised aluminium housing.
• Zinc plated electromagnetic body.
• Magnet size 535 (L) x 73 (H) x 40 mm (D).

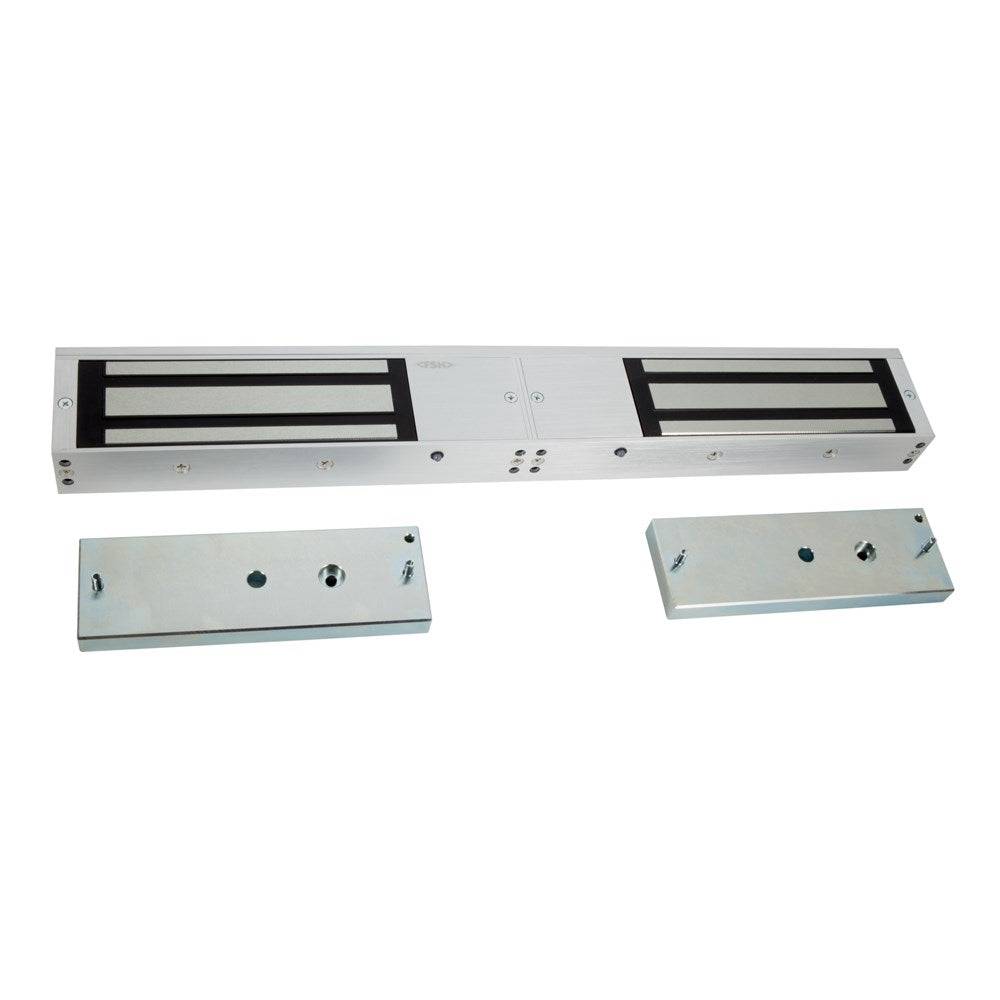

• Armature plate 190 (L) x 61 (H) x 16 mm (D) x 2.
• 5 year warranty.
• Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015).
