FSH FEM6600D 580kg Double Maglock, Non-Monitored,2 Hour Fire Rated
FSH FEM6600D 580kg Double Maglock, Non-Monitored,2 Hour Fire Rated
Regular price
$630.00 AUD
Regular price
Sale price
$630.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
FSH FEM6600D 580kg Double Maglock, Non-Monitored,2 Hour Fire Rated
Description

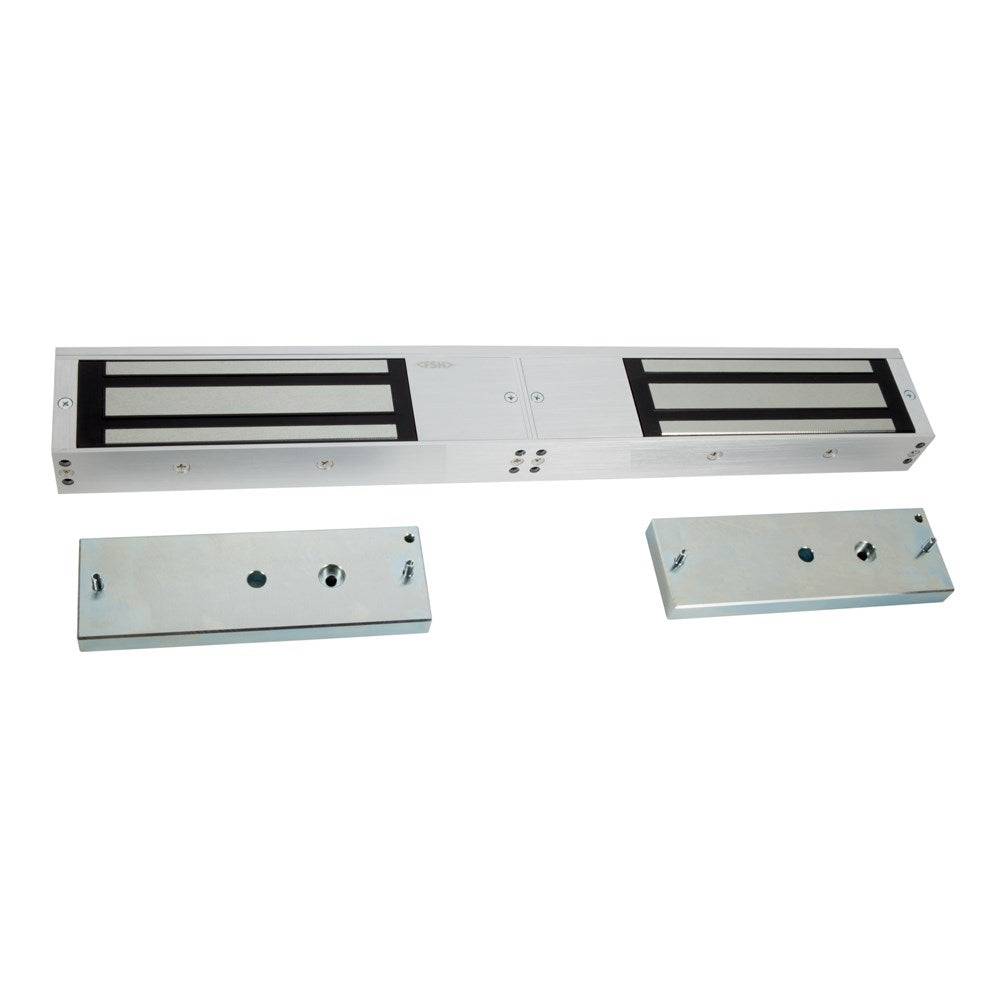

FSH FEM6600 series maglocks to suit double doors non-monitored.
5 year mechanical warranty and a holding strength of up to 580kg per magnetic lock.
Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
- Dual Voltage: 12 /24 VDC field selectable
12VDC@ 500mA 24VDC@ 250mA. - Built-in varistor (MOV) surge protection.
- No residual magnetism.
- Holding force up to 580kgs per magnetic lock.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Magnet size 535 (L) x 73 (H) x 40 mm (D).
- Armature plate 190 (L) x 61 (H) x 16 mm (D) x 2.
- 5 year warranty.
- Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015).
Technical Specifications
| Brand | FSH |
| Current | 1 A @ 12 Vdc, 500 mA @ 24 Vdc |
| Finish | Satin Anodised |
| Holding Strength in kg | 580 |
| Working Voltage | 12/24 Vdc |
| Fire Rated | Yes, 2 Hours |
| Single Or Double Door Maglock? | Double |
| Monitoring | Non-Monitored |
