DOOR BOTTOM SWEEP SEAL 40W FACE MNT 1000 SIL

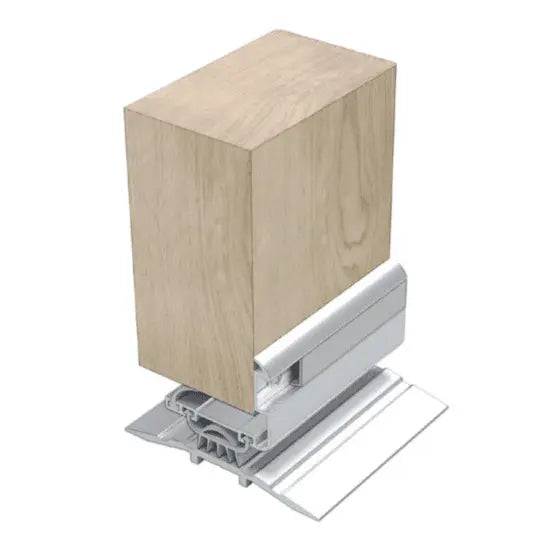

LAS3007 si Door Bottom Seal
A weather proof seal which can be fitted without removing the door, and can be used with a choice of threshold plates.

Key benefits

• Durable multi-bladed silicone seal.
• Snap-fit cover strip conceals fixing points.
• Slotted fixing holes provide simple adjustment.
• Aesthetic anodised finish.

Standard lengths
This variant is 1m

Also available as 2.1m. Other lengths to special order.

Gap sizes
16mm/22mm

Fixing method
Self-tapping screws are supplied. Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. A snap-fit cover strip to conceal fixings is supplied.

Finishes
Silver anodised aluminium with grey cover strip and grey silicone rubber gasket.

Approvals
Smoke: Conforms with BCA Specification C3.4 smoke sealing requirements.
Durability: Long term mechanical test, completing 1,000,000 cycles without failure.
