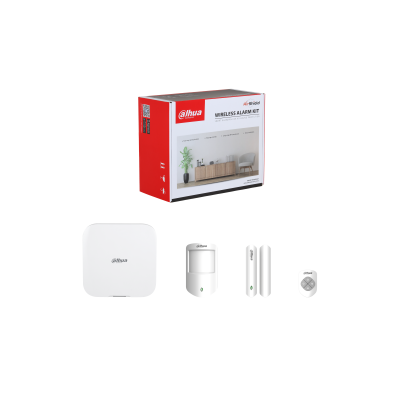

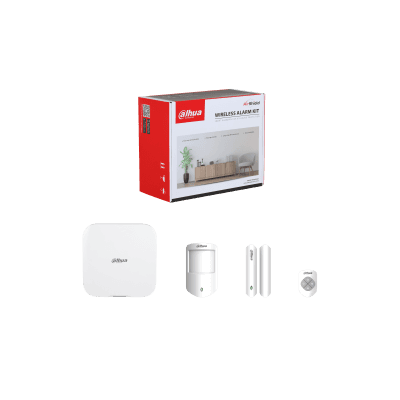

Dahua Wireless Alarm KIT

Port

Wireless Zone

Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)

Network Mode

Hub:Ethernet, Wi-Fi and Cellular network(Supports installation of dual SIM cards. Only one card can be enabled at a time)

Network Port

Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port.

Storage Battery

Hub: One built-in 4,750 mAh rechargeable lithium battery.

Video & Audio

Video Input

Hub: 8-ch IPC, which only supports the upload of alarm videos.

Audio Output

Hub: 1 channel

Volume Control

Hub: Yes

Voice Broadcast

Hub: Telephone and local speaker

Function

Indicator Light

Hub: The indicator indicates the status of alarms, arming and disarming, the network connection and device failure.
Keyfob: 1 dual-color status indicator (Green means normal and red means abnormal)
Door Detector: 1 green alarm indicator
PIR Detector: 1 green alarm indicator

Button

Hub: Includes a reset button, voltage button and AP switch button.
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 power switch
PIR Detector: 1 power switch

SMS

Hub: Yes (up to 5 phone numbers)

Phone Call

Hub: Yes (up to 5 phone numbers)

Video Linkage

Hub: Yes

Offline Cache

Hub: Stores up to 50 alarm messages.

Arm and Disarm

Hub: App, Keypad, remote control, card, scheduled arming and disarming.

Remote Update

All: Cloud update

Low Battery Detection

All: Yes

Tamper

Hub: Yes
Door Detector: Yes
PIR Detector: Yes

User Management

Hub: 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users

Logs

Hub: Up to 5, 000 entries

Measuring Range (Temperature)

Door Detector: –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+5°F to +149 °F) (indoor)

Transmission Protocol

Hub: SIA, SoftGuard

Technical

Sensor

Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor

Detection Mode

PIR Detector: PIR

Sensitivity

PIR Detector: 3 levels adjustable

Detection Range

PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)

Detection Speed

PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Movement Distance

Door Detector: < 40 mm (1.57")

Pet Immunity Level

PIR Detector: ≤ 18 kg (39.68 lb)

White Light Resistance Level

PIR Detector: 2000 lx

Two-way Digital Temperature Compensation

PIR Detector: Yes, no attenuation of detection distance in high temperature.

Scenario

Door Detector: Non-metal doors

Wireless

Carrier Frequency

All: 433.1 MHz–434.6 MHz

Transmitter Power (EIRP)

All: Limit 10 mW

Communication Mechanism

All: Two-way

Communication Distance

Hub: Up to 1,400 m (4593.18 ft) in an open space.
Keyfob: Up to 500 m (1640.42 ft) in an open space.
Door Detector: Up to 1,000 m (3280.84 ft) in an open space.
PIR Detector: Up to 1,200 m (3937.01 ft) in an open space.

Encryption Mode

All: AES128

Frequency Hopping

All: Yes

General

Language

Hub: Up to 7 languages are supported for SMS: English, Spanish (Latin America), French, Italian, Arabic, Turkish, and Danish. It is set as English by default. The alarm voice message feature and local speaker support English and Italian.

Power Supply

Hub: 100-240 VAC, 50/60 HZ
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery

Standby Time

Hub:The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud.
Keyfob: 3 years
Door Detector: 4 years
PIR Detector: 4 years

Power Consumption

Hub: 220 VAC 80 mA(Max) 220 VAC 40 mA(Standby)
Keyfob: 40 mA(Max), 0.5 uA (Standby)
Door Detector: 42 mA(Max), 29 uA (Standby)
PIR Detector: 44 mA(Max), 34 uA (Standby)

Operating Temperature

All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

All: 10%–90% (RH)

Product Dimensions

Hub: 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)

Net Weight

Hub: 510 g (1.12 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)

Gross Weight

Kit: 1.46 kg (3.22 lb)

Installation

Hub: Wall mount; Desktop mount
Door Detector: Bracket mount
PIR Detector: Wall mount
Hub: Wall mount; Desktop mount
Door Detector: Bracket mount
PIR etector: Wall mount

Casing Material

All: PC + ABS

Certifications

All: CE

Anti-corrosion Level

Basic Protection

Storage Temperature

All: –10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

All: 10%–90% (RH)

Packaging Dimensions

Kit: 270 mm × 218 mm × 122 mm (10.63" × 8.58" × 4.80") (L × W × H)

Wi-Fi

Wi-Fi Standard

Hub:IEEE 802.11b/g/n

Wi-Fi Frequency Range

Hub:2400-2483.5 MHz

Wi-Fi Power Transmission

Hub:≤20 dBm@2400-2483.5 MHz

Cellular Network

Transmitter Power (EIRP)

Hub:
EU:
4G: Power class3: 23 dBm±2dB
3G: Power class3: 24 dBm+1/-3dB
2G: Power class0: 30 dBm±3dB（GSM900）
Power class5: 33 dBm±3dB（GSM1800）
Hub:
LM：
4G: Power class3: 23 dBm±2dB
3G: Power class3: 24 dBm+1/-3dB
2G: Power class0: 30 dBm±3dB（GSM850/900）
Power class5: 33 dBm±3dB（GSM1800/1900）

Cellular Network Standard

Hub:GSM/WCDMA/LTE

Frequency Range

Hub:
EU:
4G：FDD-LTE: B1/B3/B7/B8/B20/B28A; TDD-LTE: B38/B40/B41;
3G：WCDMA: B1/B8;
2G：GSM: 1,800/900MHz;
Hub:
LM:
4G：FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28; TDD-LTE: B40;
3G：WCDMA: B1/B2/B4/B5/B8;
2G：GSM: 850/900/1800/1900 MHz;
